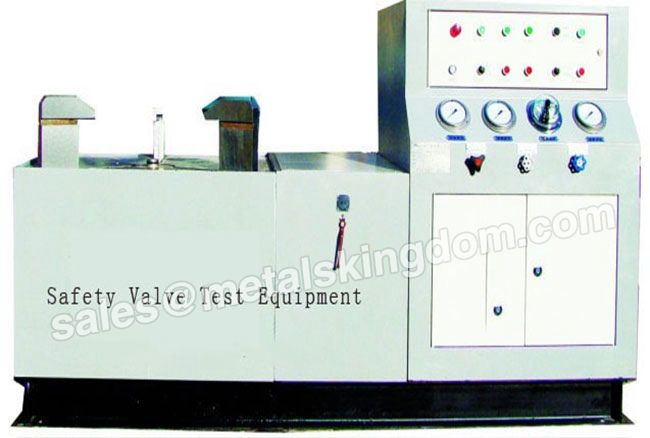

Safety Valve Tightness Test Bench

    1. Apply for setting the activated pressure of relief valve and test the seal tightness performance of valves which have a straight-flange connection .

    2. Clamping pressure valve type is hold, hold press claws clamping flange, no external influence on the test valve.

    3. Test medium could be water, gas,or oil, by customer choice .

Safety valve test bench Application scope

1,Apply for setting the activated pressure of relief valve and test the seal tightness performance of valves which have a straight-flange connection .
2,Clamping pressure valve type is hold, hold press claws clamping flange, no external influence on the test valve.
3,Test medium could be water, gas,or oil, by customer choice .

Safety valve test bench specifications

Model SYTA150/10-32SYTA350/5-32SYTA600/6-24

Valve ND (mm)
20-15050-300300-600

  Test pressure (Mpa)
32-1.632-1.620-1.6

  Voltage (V)
380380380


Safety Valve Tightness Test Bench

Safety Valve Tightness Test Bench

Safety Valve Tightness Test Bench

Safety Valve Tightness Test Bench

Safety Valve Tightness Test Bench

Safety Valve Tightness Test Bench
