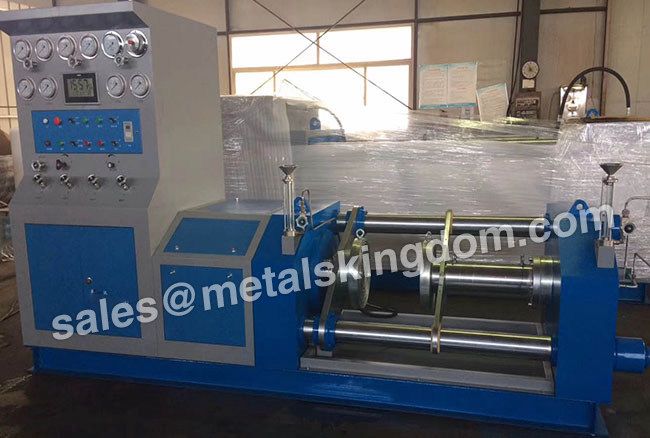

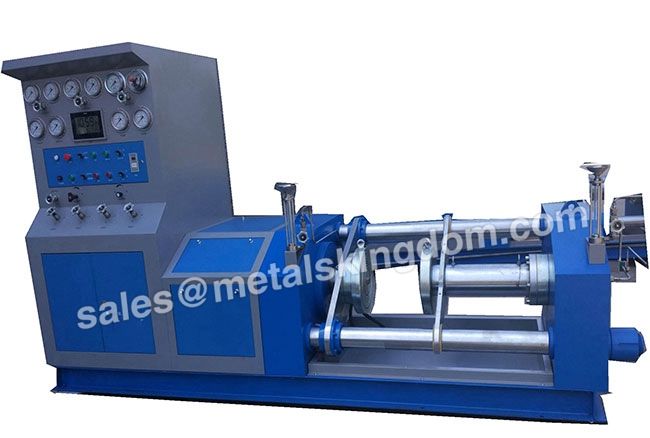

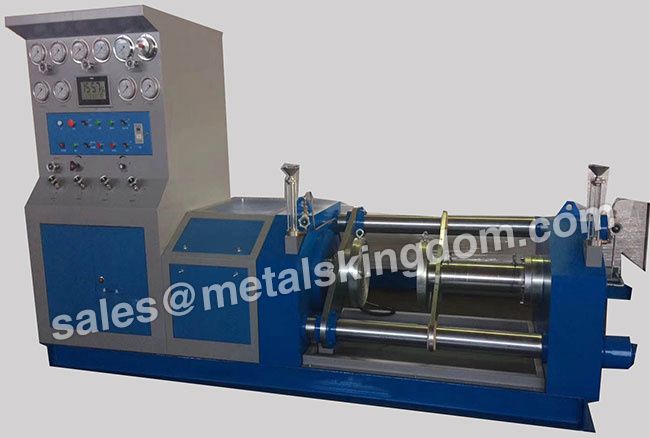

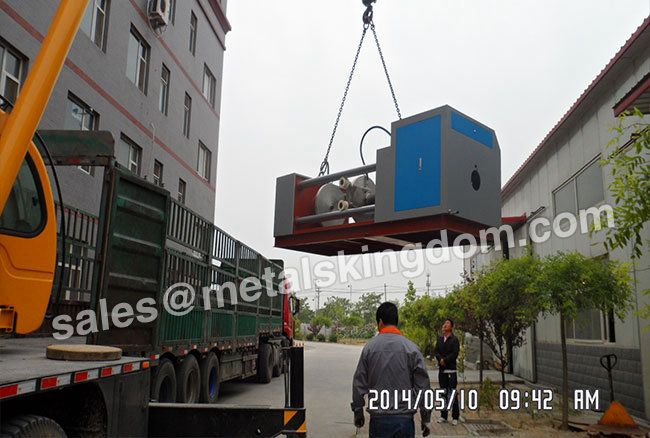

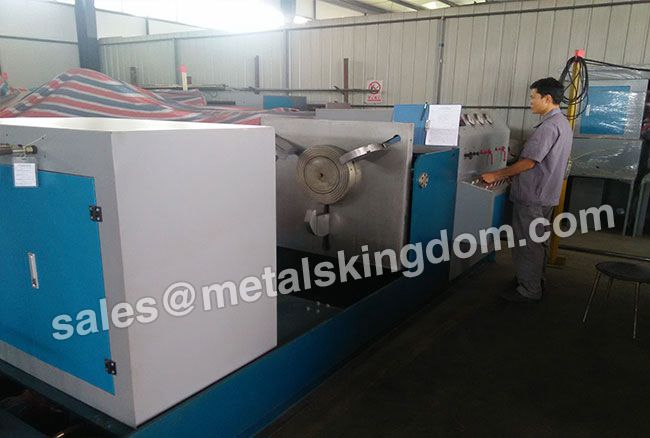

Horizontal Type SYTW400/6-32 Valve Test Bench

    1. This test bench is designed and manufactured with reference to similar products of Germany and GB4981 standard,

    2. Suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation.

    3. Suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981,

       4. Features: simple operation, safe and reliable, sensitive test.

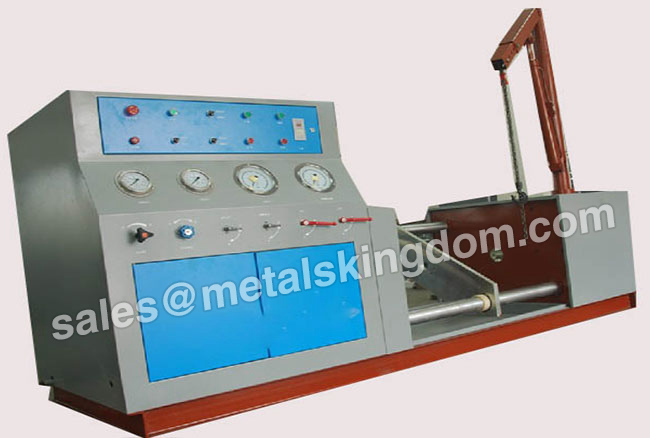

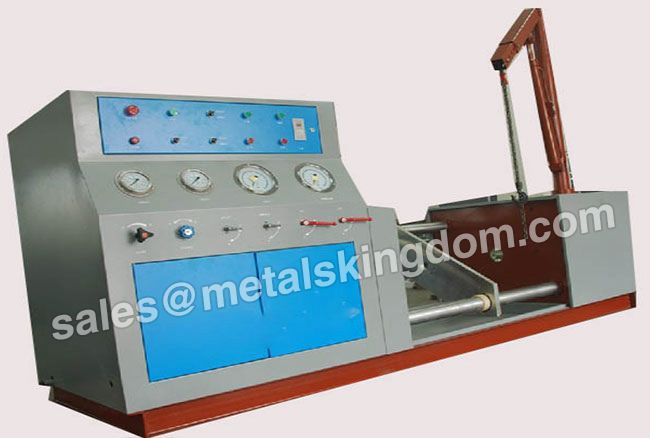

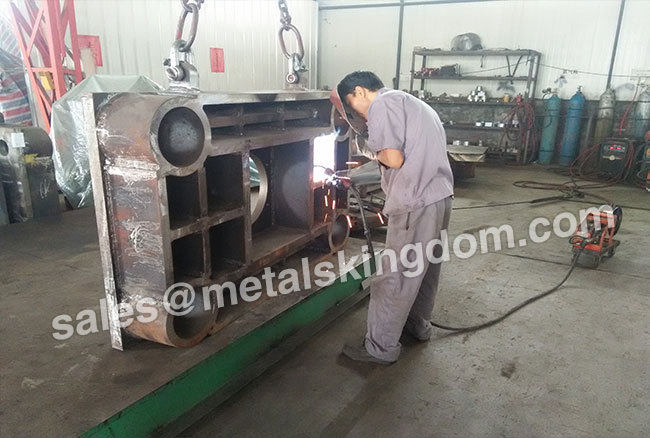

Horizontal Type Valve Pressure Test Bench

1.Introduction of Horizontal Type Valve Pressure Test Bench

This test bench is designed and manufactured with reference to similar products of Germany and GB4981 standard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.

2.Features of Horizontal Type Valve Pressure Test Bench:

1)     Applicable to gate valve,globe valve,ball valve,Check valve and etc direct-flange connection valves

2)     Accessories special sealing disc is applicable to test welded valve’s performance

3)     Valve clamping type is up pressure,clamp is through press on the sides of direct-flange connection valves

4)     Standard equips with High and low pressure water pump pressure systems,gas supercharging is selection

3.Advantages of Horizontal Type Valve Pressure Test Bench

Simple to operate, easy to use and less error-prone.

Safe and reliable, it is designed and manufactured with reference to ISO5028 "Pressure Test of Industrial Valves" and GB/T13927-92 "General Valve Pressure Test".

The test is sensitive, the inner sealing performance test, the upper sealing performance test, the valve body strength test and other functional tests have high sensitivity.

4. Technical parameters:

Valve Nominal Diameter20-400mm(Flange connection )
Maximium Test   Pressure  PN32Mpa(4500LB) Max
Nominal VoltageExchange 380V
Rated Power8.5KW
Line VoltageExchange 220V
Hydraulic oil

N46 hydraulic Oil(provide   by user

The oil temperature is   Max 60 degrees centigrade ,

Min 2   degrees centigrade

Oil circuit system   Pressure25Mpa max
Test Medium

Water(Allows to add rust inhibitor) kerosene or other liquid

 it’s viscosity   not higher than water

Test   temperature(Envioment Temp)5 degree centigrade to 40 degree   centigrade
Axial   clamping Length scope50-950mm
Max   Lateral Spacing750mm
Max   Clamping Force65(T)
Max   Lifting Weight300kg
Size3350×1150×2200(mm)

5.Comparison Table for Valve Nominal Diameter and Max Test Pressure

Valve Nominal Diameter DN(mm)100max200225300400
Max Test PressurePN(MPa)3224209.66.0

Horizontal Type Valve Pressure Test Bench

Horizontal Type Valve Pressure Test Bench

Horizontal Type Valve Pressure Test Bench

Horizontal Type Valve Pressure Test Bench

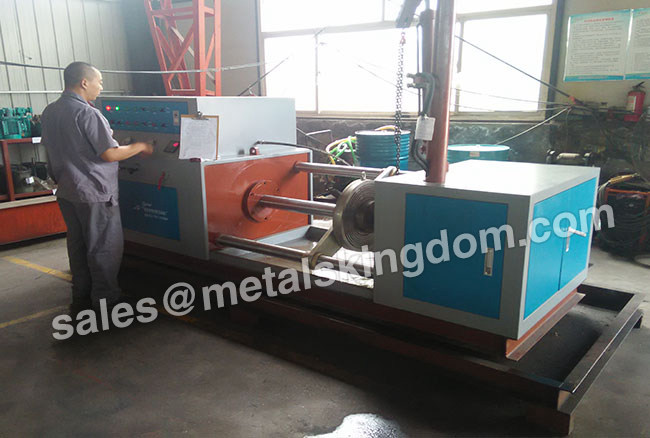

Horizontal Type SYTW400/6-32  Valve Test Bench

Horizontal Type SYTW400/6-32  Valve Test Bench

Horizontal Type SYTW400/6-32  Valve Test Bench

Horizontal Type SYTW400/6-32  Valve Test Bench

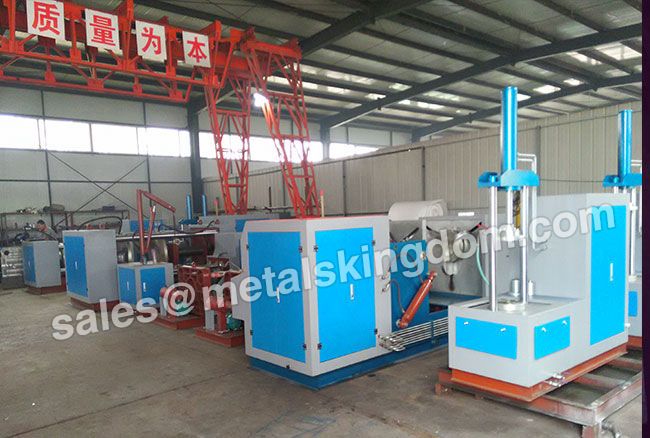

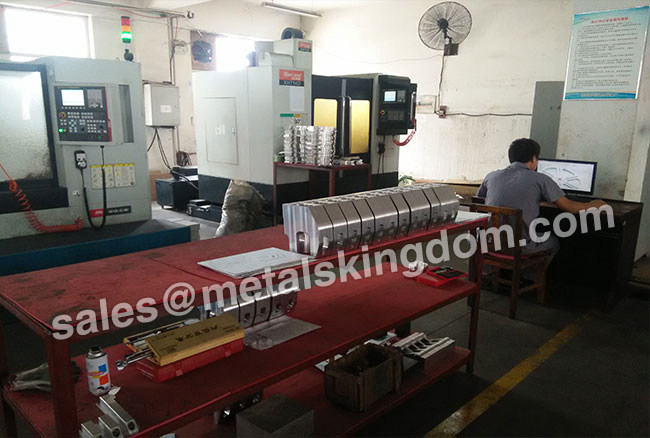

Metals Kingdom Industry Limited is a professional manufacturer of valve and pipeline testing and maintenance equipment since 1994. The products have obtained the national utility model patent, and passed the ISO quality management certification in 2008. We have the enterprise strength and product quality worthy of your trust.

If you have any needs, you are welcome to consult us at any time.
