Valve Testing Rig

As a manufacturer of valve testing systems, we specialize in designing, engineering, and producing valve test benches.

Our Valve Testing Rig testing on Flanged Valves, Our Valve Testing Rig  has been designed to test Gate, Globe, Check, Plug, Ball, Needle, Butterfly, Control, Safety Relief Valves and special valves, fittings and pipe. We work collaboratively with our customers, applying the latest product design and systems on the market today to address specific industry valve testing requirements.

Valve Pressure Test Bench is designed and manufactured according to the standard GB / T13927-2008 “industrial valve pressure test “and SH 3518-2013“Standard for inspection and management of petrochemical valves”, and fully considers the advantages and disadvantages of similar equipment at home and abroad to make it Continuous improvement and optimization. The equipment is mainly used to test the sealing performance of new valves before on-line or after the repair of old valves. These tests include inner sealing performance test, upper sealing performance test, valve body strength test, etc.

Construction of valve test benches

Horizontal Type Valve Test Bench, Vertical Valve Test BenchFlipped Double Hold Pressure Valve Test Bench


Components

The Valve Testing Rig is composed of the mechanical assembly (base frame with clamping device), an electric stem drive mechanism, a heating and cooling device, a control cabinet, a leakage device, a PC and monitor. A leak detector is available as optional accessory.


Valve Testing Rig

Specifications:


Valve Nominal Diameter

20-800mm(Flange connection )

For the testing of

Ball Valve,Gate valve,Check Valve,Butterfly Valve,Safety Valve,Control Valve,Shut off Valve

Maximium Test Pressure PN

31.5-32Mpa(4500LB) Max

Nominal Voltage

Exchange 380V

Rated Power

8.5KW

Line Voltage

Exchange 220V

Hydraulic oil

N46 hydraulic Oil(provide by user

The oil temperature is Max 60 degrees centigrade ,

Min 2 degrees centigrade

Oil circuit system Pressure

25Mpa max

Test Medium

Water(Allows to add rust inhibitor) kerosene or other liquid it’s viscosity not higher than water

Test   temperature(Envioment Temp)

5 degree centigrade to 40 degree centigrade

Axial   clamping Length scope

50-950mm

Max   Lateral Spacing

750mm

Max   Clamping Force

65(T)

Max   Lifting Weight

300kg

Size

3350×1150×2200(mm)


For more product details, please click here to download

Brochure-Valve Test Rig.pdf


KEY FEATURES

Easy to operate

Fully automatic operation system

Testing one or a complete series of valves.


Valve Testing Rig

About Us

We are a professional manufacturer of Valve Test Benches and Valve Testing Rigs. With our expertise and experience in this field, we are dedicated to providing high-quality and reliable testing solutions for various types of valves. Our state-of-the-art facilities and skilled engineers allow us to design and manufacture customized testing equipment that meets the specific needs of our clients. We are committed to delivering superior products and services to our customers, and we take pride in being a trusted partner for their testing needs.

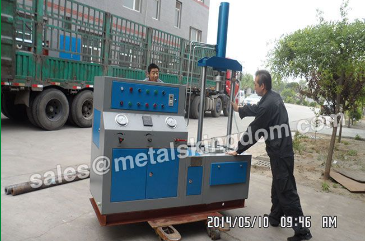

Valve Body Testing Rig

Valve Body Testing Rig

View More

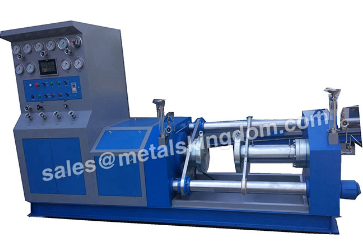

Valve Body Testing Rig

Valve Body Testing Rig

View More

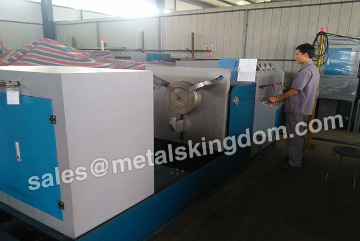

Valve Body Testing Rig
