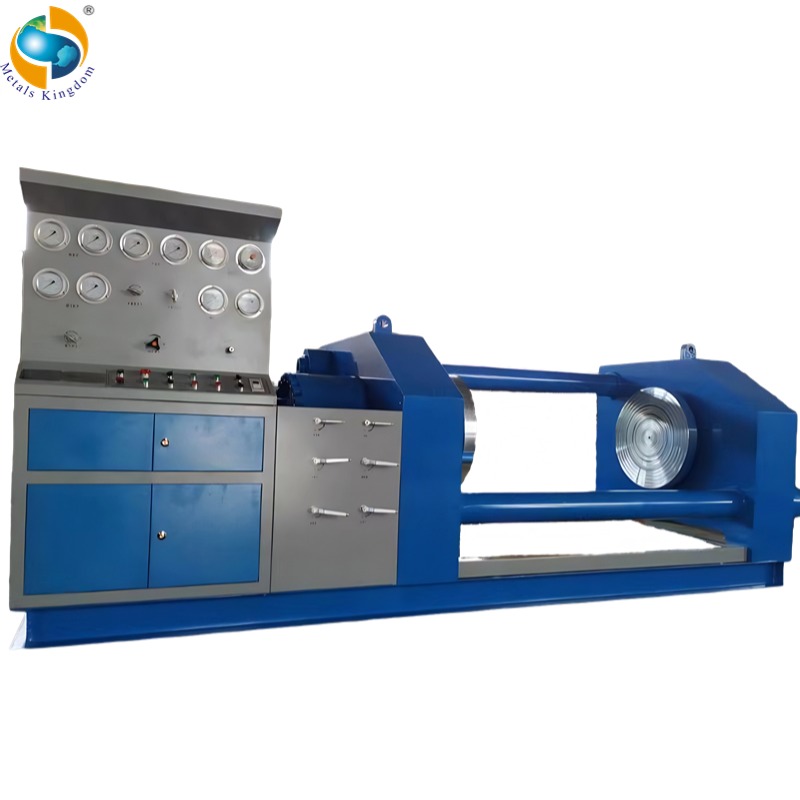

Horizontal Type SYTW400/3.5-32 Valve Test Bench
Suitable for gate valves, globe valves, ball valves, control valves, check valves and other straightflange
connection valve seal and valve body strength performance test .
Optional special sealing disk can be used to performance testing for weld valves and threaded coupling valves .
The Valve clamping pressure type is the top-jacking, through the straight surface pressure across the valve clamp valve.
Test medium could be water, gas,or oil, by customer choice .
EHV test bench can be customized. Configuration import UHP fittings, valve test 150MPa Christmas tree valve.
1. Product Introduction
To ensure the reliable sealing quality of newly manufactured valves and valves after maintenance, the final process in valve production and valve maintenance is pressure testing. The testing methods used should comply with national or international standards. The most commonly used standards include American standards (ANSI/ASME, API), German standards (DIN), European standards (EN), and international standards (ISO).
Valves can be categorized into the following types: block valves (gate valves, globe valves, ball valves, check valves, etc.), control valves, and control valves. Although the standards for valve pressure testing vary, the testing methods for different types of valves are generally similar, with the most important aspects being: testing the strength of the valve body; inspecting the sealing integrity of the valve body, valve stem, and valve shaft; inspecting the sealing integrity of the valve seat or base (if applicable); and determining the trip pressure of the safety valve.
This test bench is designed and manufactured with reference to similar products of Germany and GB4981 standard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.
Features:
1) Applicable to gate valve,globe valve,ball valve,Check valve and etc direct-flange connection valves
2) Accessories special sealing disc is applicable to test welded valve’s performance
3) Valve clamping type is up pressure,clamp is through press on the sides of direct-flange connection valves
4) Standard equips with High and low pressure water pump pressure systems,gas supercharging is selection
2. Technical parameter
| Valve Nominal Diameter | 50-400mm(Flange connection ) |
| Accessories | Dia500mm Plane Sealing disc |
| Dia166mm Plane Valve Sealing disc |
| Dia100mm(80degree)Welding Valve Sealing Disc |
| Maximium Test Pressure PN | 32Mpa(4500LB) |
| Nominal Voltage | Exchange 380V |
| Rated Power | 8.5KW |
| Line Voltage | Exchange 380V |
| Hydraulic oil | N46 hydraulic Oil(provide by user )The oil temperature is Max 60 degrees centigrade , Min 15 degrees centigrade |
| Test Medium | Water(Allows to add rust inhibitor) kerosene or other liquid. it’s viscosity not higher than water |
| Test temperature(Envioment Temp) | 5 degree centigrade to 40 degree centigrade |
| Axial clamping Length scope | 50-850mm |
| Radial Clamping Wideth Max | 650mm` |
| Max Clamping Power | 65(T) |
| Max Lifting Weight | 300kg |
| Size | 3090×1010X2200mm |
| Max Height | 2200mm |
Comparison Table for Valve Nominal Diameter and Max Test Pressure
| Valve Nominal Diameter DN（mm） | 50-125 | 150 | 200 | 250 | 300 | 350 | 400 |
| Max Test PressurePN（MPa） | 31.5 | 24 | 14 | 8.8 | 6 | 4.5 | 3.5 |
Comparision Table of Valve Seling Pressure and Test Pressure
| SYTW 400/3.5-32Valve Test Bench Pressure Comparision Table |
| Norminal Pressure(MPa) | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 |
| Test Pressure(MPa) | 3.75 | 6.0 | 9.6 | 15.0 | 24.0 | 30.0 | 37.5 | 48.0 |
| Norminal Diameter(DN) | Sealing Pressure(MPa) |
| in | mm |
| 2 | 50 | 2.0 | 2.0 | 2.0 | 2.0 | 2.8 | 3.5 |
|
|
| 2-1/2 | 65 | 2.0 | 2.0 | 2.0 | 3.0 | 4.7 | 6.0 |
|
|
| 3 | 80 | 2.0 | 2.0 | 2.8 | 4.5 | 7.0 | 9.0 |
|
|
| 4 | 100 | 2.0 | 2.8 | 4.5 | 7.0 | 11.0 | 14.0 |
|
|
| 6 | 150 | 4.0 | 6.2 | 10.0 | 15.6 | 25.0 |
|
|
|
| 8 | 200 | 7.0 | 11.0 | 17.8 | 28.0 |
|
|
|
|
| 10 | 250 | 10.8 | 17.5 | 28.0 |
|
|
|
|
|
| 12 | 300 | 15.6 | 25.0 |
|
|
|
|
|
|
| 14 | 350 | 21.0 |
|
|
|
|
|
|
|
| 16 | 400 | 28.0 |
|
|
|
|
|
|
|

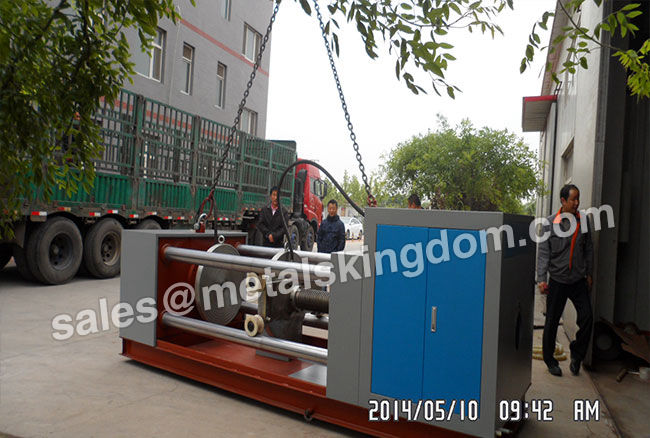

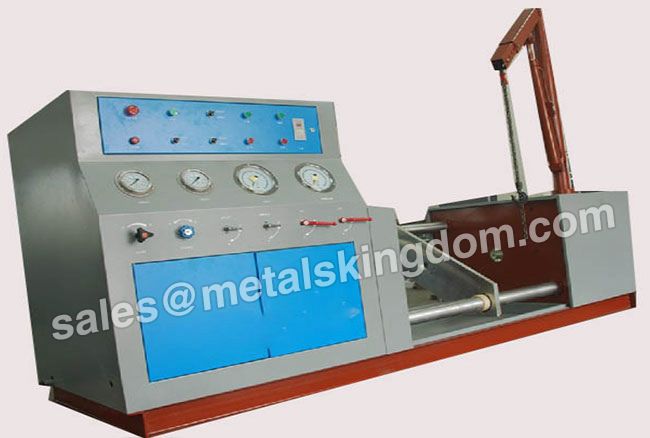

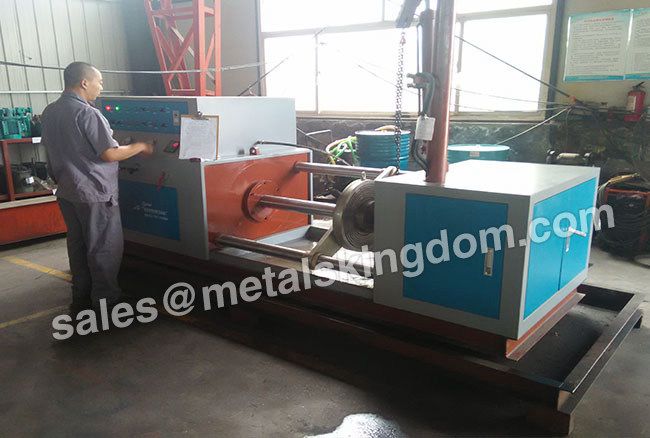

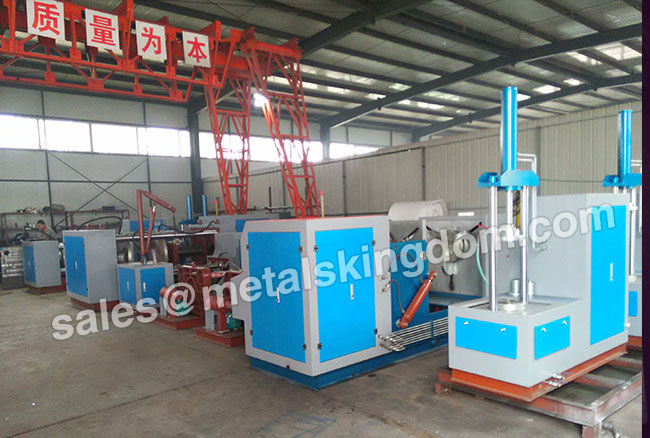

3.Horizontal Type SYTW400 Valve Pressure Test Bench picture
Why Choose Metals Kingdom as Your Horizontal Type SYTW400/3.5-32 Valve Test Bench Supplier?
Since 1994, Metals Kingdom Industry Limited has been a professional manufacturer of valve and pipe testing and repair equipment.
National Patents
Our Portable Valve Grinding Machine and Valve Test Bench connecting rod synchronous telescopic mechanism obtained National Utility Model Patents in 1996 and 2014.
ISO Certified
In 2008, our factory received ISO Quality Management certification and was approved as a material supplier by China National Petroleum Corporation and National Power Corp.
Excellent Service
Metals Kingdom Industry Limited and Benefit All Imp & Exp Co., Ltd are committed to delivering high-quality products and excellent service. Guided by the principles of Technology, Quality, and Credit, we warmly welcome you to visit our factory and look forward to building long-term business relationships with partners worldwide.
If you need other types of Valve Test Benchs, welcome to contact us.
