About Valve Pressure Test Bench Price

The price of Valve Pressure Test Bench products is negotiable, you can contact our sales staff to get the best price.

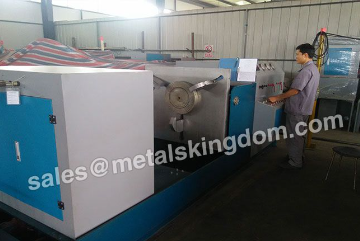

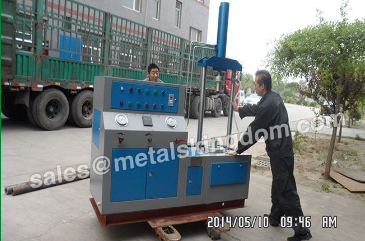

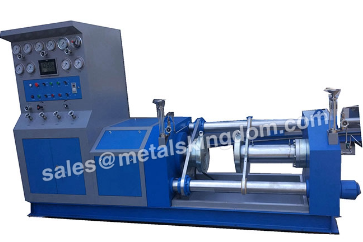

Valve Pressure Test Bench:

Our full line of hydrostatic testing systems perform hydrostatic and pneumatic testing of flanged, socket welded, butt welded, female and special end valves. Our systems are designed to test gate valves, globe valves, check valves, plugs, ball valves, needle valves, butterfly valves, control valves, safety relief valves and special valves, fittings and piping. We work with our customers to apply the latest product designs and systems on the market today to meet specific industry valve testing requirements.

Valve test benches can be used for a variety of applications such as intermediate and final inspections by valve manufacturers, testing new valves on delivery, and routine or post-repair testing of in-service valves. These include, for example, pressure testing of valve housings, leak testing of valve seats, and set pressure testing of safety valves.

Other components can also be pressure tested, such as fuel tanks, motor housings, pump housings, pipe fittings, insulators, etc. Special clamping devices may be required to clamp these specimens.

Features of Valve Pressure Test Bench:

Accessories special sealing disc is applicable to test welded valve’s performance

Valve clamping type is up pressure,clamp is through press on the sides of direct-flange connection valves

Standard equips with High and low pressure water pump pressure systems,gas supercharging is selection

Capable of testing valves up to 800mm

Easy, manual operation

• Hydraulic clamping capacity up to 500 tons

• Adjustable large valve bracket

• Various test adapters available

• Proven reliability, easy maintenance and robustness

• For both air/gas+water pressure testing

• Maximium Test Pressure: 32Mpa(4500LB)


•


•
