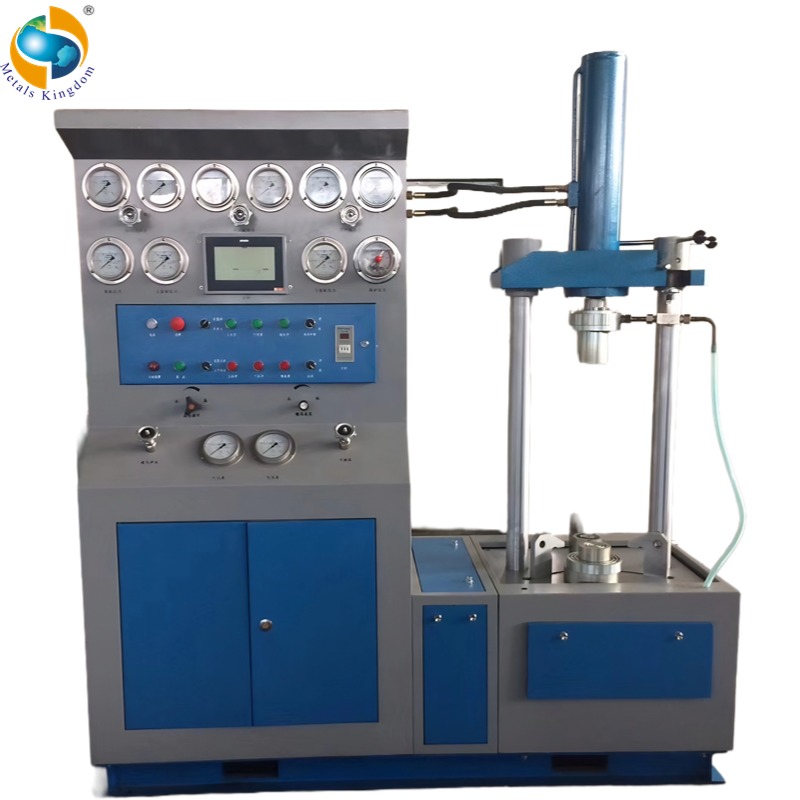

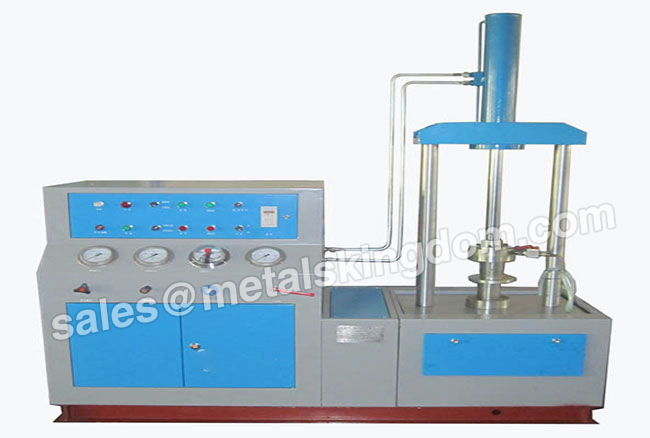

Top Pressure SYTL150/7.5-32 Type Vertical Valve Test Bench

    1. Valve Nominal Diameter: DN 20-150mm( Flange connection valves) if with special sealing plate ,it can be used to test the welding valve.

    2. Maximium Test Pressure:  PN 31.5Mpa(4500LB) Max.

    3. Hydraulic oil: N46 hydraulic  Oil(provide by user)

          The oil temperature is Max 60 degrees centigrade ,Min 5 degrees centigrade.

    1. Oil circuit system Pressure :28Mpa max.

    2. Test Medium: Water(Allows to add rust inhibitor) kerosene or other liquid it’s viscosity not higher than water

    3. Test temperature(Envioment Temp): 5 degree centigrade to 40 degree centigrade

    4. Transverse  clamping Length scope :0-700mm

    5. Radial distance: 380mm

    6. Max Clamping Force: 20(T)



1.Product characteristics and application:

This Vertical Valve Test Bench is designed and manufactured with reference to similar products of Germany and GB4981 stabdard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.

Features: simple operation, safe and reliable, sensitive test.

2.Technical parameters:

Valve Nominal Diameter DN

20-150mm( Flange connection valves)

if with special sealing plate ,it   can be used to test the welding valve

Maximium Test Pressure  PN31.5Mpa(4500LB) Max
Nominal VoltageExchange 380V
Rated Power7KW
Line VoltageExchange 220V/24V
Hydraulic  oil

N46 hydraulic  Oil(provide by   user)

The oil temperature is Max 60 degrees centigrade ,Min 5 degrees   centigrade

Oil circuit system Pressure28Mpa max
Test Medium

Water(Allows to add rust inhibitor)

  kerosene or other liquid it’s viscosity not   higher than water

Test temperature(Envioment Temp)5 degree centigrade to 40 degree centigrade
Transverse  clamping Length scope0-700mm
Radial distance380mm
Max Clamping Force20(T)
Weight4.5tons
Size1850×700×1900(mm)

3.Comparison Table  of Valve Nominal Diameter and Max Test Pressure

Valve   Nominal Diameter DN(mm)70max8090100150
Max   Test PressurePN(MPa)31.52620167.5

Comparision Table of Valve Sealing Pressure and Test Pressure

SYTL 150/7.5-32Valve Test Bench Pressure Comparision Table
Norminal   Pressure(MPa)2.54.06.410.016.020.025.032.0
Test   Pressure(MPa)3.756.09.615.024.030.037.548.0
Norminal   Diameter(DN)Sealing  Pressure(MPa)
inmm
3/4202.02.02.02.02.02.0

1252.02.02.02.02.53.0

2502.02.53.65.79.011.3

2-1/2652.53.86.09.515.219.0

3803.65.89.214.423.028.0

41005.69.014.422.5



615012.720.3






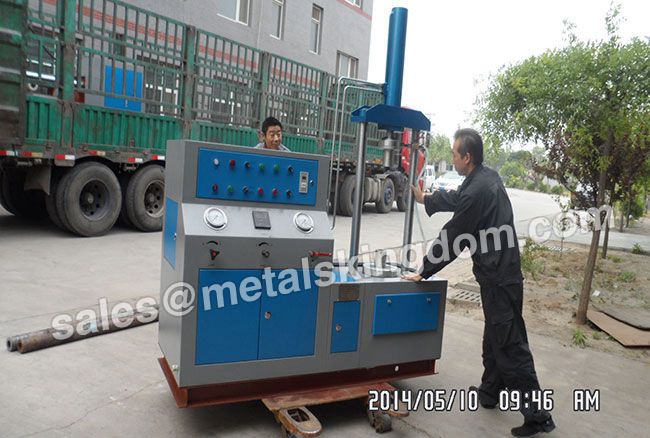

Top Pressure SYTL150/7.5-32 Type Vertical  Valve Test Bench

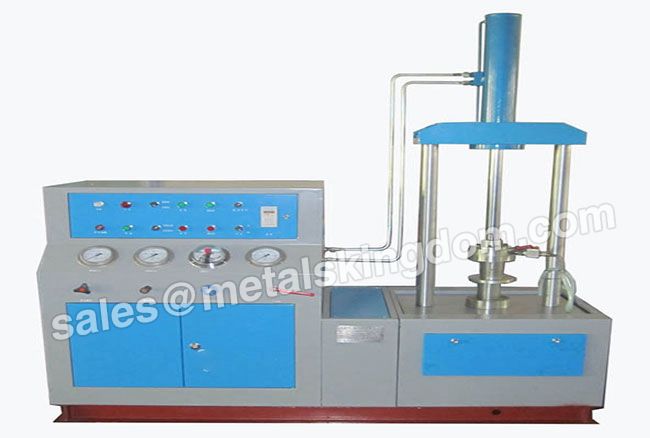

Top Pressure SYTL150/7.5-32 Type Vertical  Valve Test Bench

Top Pressure SYTL150/7.5-32 Type Vertical  Valve Test Bench

Top Pressure SYTL150/7.5-32 Type Vertical  Valve Test Bench

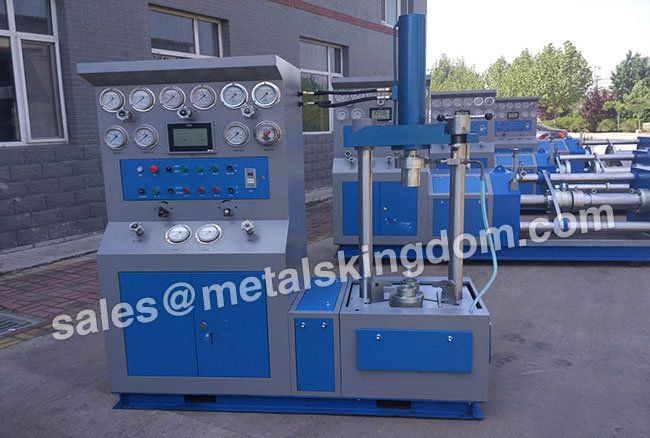

Top Pressure SYTL150/7.5-32 Type Vertical  Valve Test Bench

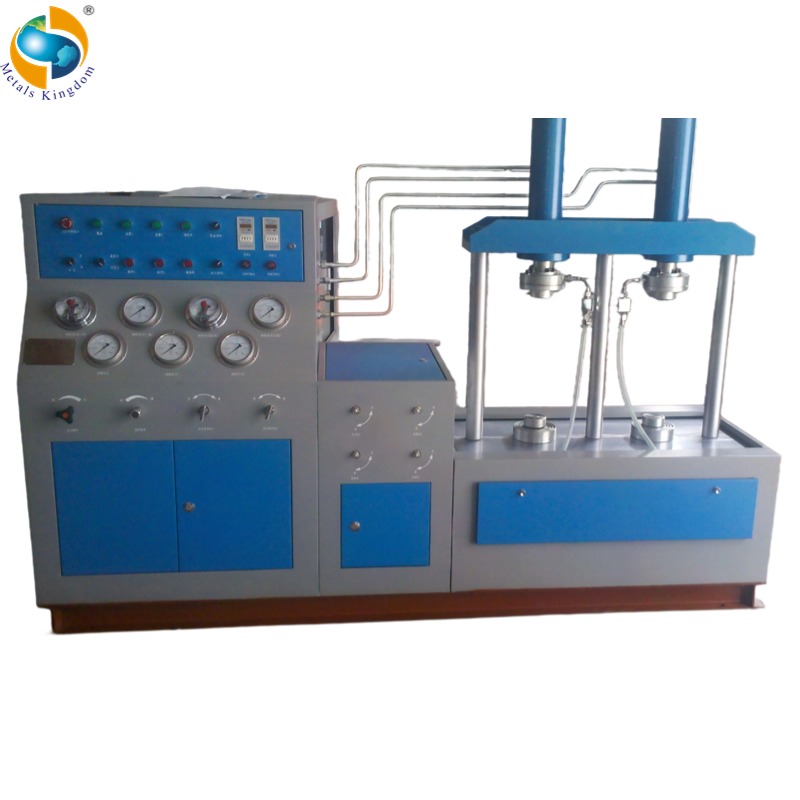

The SYTL150/7.5-32 vertical valve tester is one of our best valve pressure testing benches. In addition to vertical valve test benches, we also offer horizontal valve test benches. Contact us today.
