SYTL200/32-2T Valve Pressure Test Bench

Applications: Straight-through valves with flanged ends.

Test functions: Shell pressure testing, seat leakage testing, and low-pressure air testing.

Structure: Top pressure vertical clamping type.

Maximum test pressure: 32 MPa.

Clamping force: 2 ton-force.

Test medium: Water and low-pressure air.

Application: Valve manufacturers and maintenance workshops.

Inquire Now Next Product

Product features

Product Overview

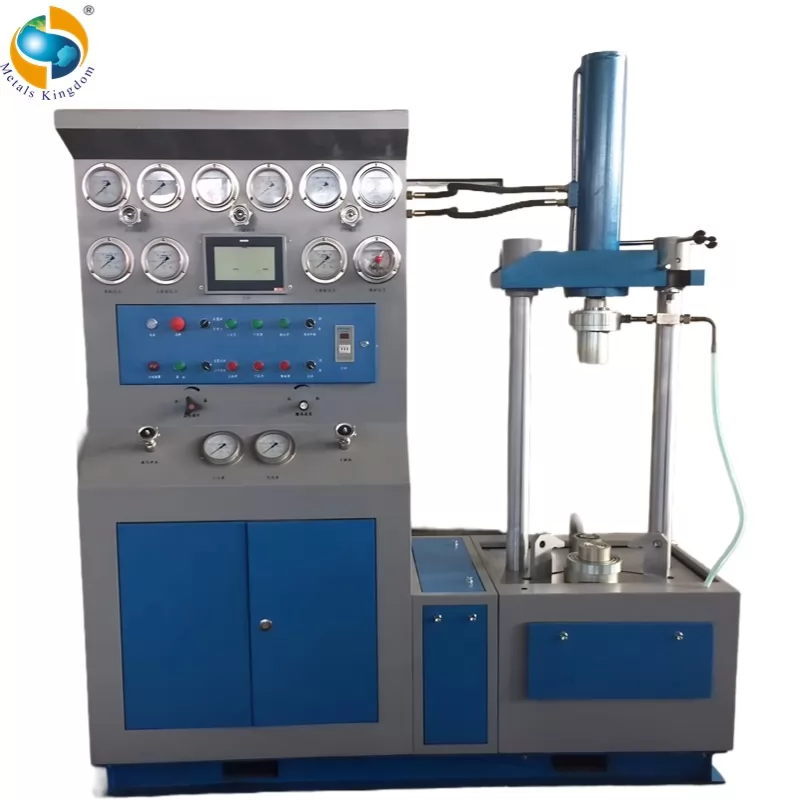

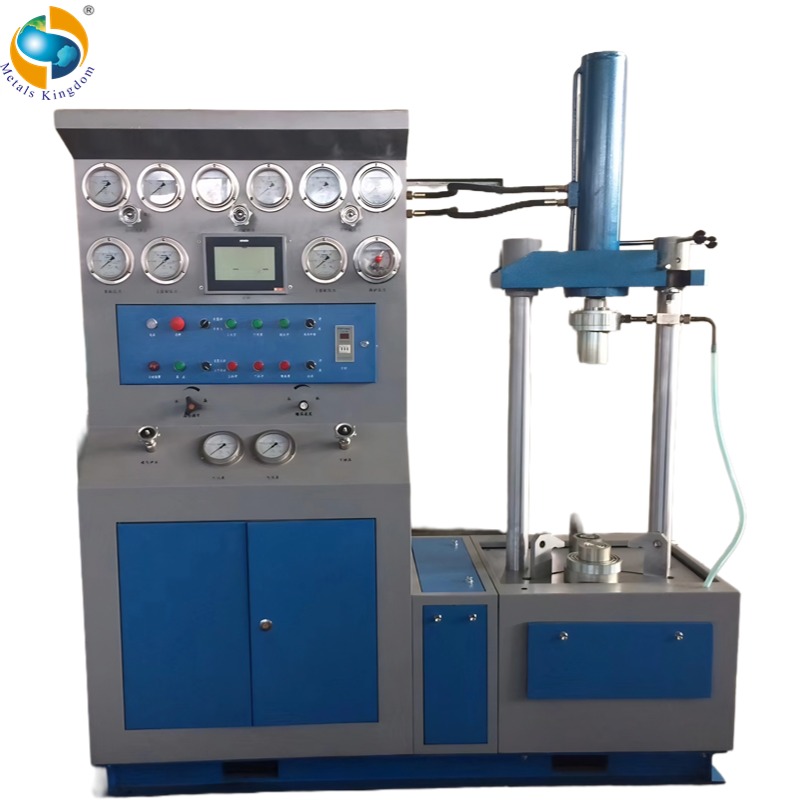

The SYTL200/32-2T Valve Pressure Test Bench is a top pressure vertical valve testing system designed for pressure testing of industrial valves.

The vertical clamping structure applies axial force from the top side of the valve, providing stable positioning and convenient operation during pressure testing.

With a maximum clamping force of 2 ton-force, the equipment is suitable for reliable shell pressure and sealing performance verification of applicable valves.

Applications

• Flanged gate valves

• Flanged globe valves

• Straight-through industrial valves

• Valve manufacturing inspection

• Valve maintenance testing

Product Features

• Top pressure vertical clamping structure

• 2 ton-force clamping capability

• Stable valve positioning during testing

• Supports hydraulic and pneumatic testing

• Compact structure for workshop installation

• Suitable for valve service centers and manufacturers

Testing Functions

Shell Pressure Test: Verify valve body strength and pressure resistance.

Seat Leakage Test: Check valve sealing performance.

Low-pressure Air Test: Perform pneumatic leakage inspection.

Technical Specifications

Model: SYTL200/32-2T

Equipment type: Top Pressure Vertical Valve Pressure Test Bench

Applicable valves: Straight-through flanged valves

Maximum test pressure: 32 MPa

Structure: Top pressure vertical clamping type

Clamping force: 2 ton-force

Test medium: Water and low-pressure air

Selection Information

The suitable valve pressure test bench should be selected according to valve type, valve size, pressure rating, flange dimensions, testing pressure, and working requirements.

Please provide the following information for technical recommendation:

• Valve type

• Valve size and pressure class

• Flange dimensions

• Required test pressure

• Testing medium requirements

Typical Industries

The SYTL200/32-2T Valve Pressure Test Bench is widely used in valve manufacturing plants, petroleum, petrochemical, chemical processing, power generation, and industrial maintenance facilities.
