M-100 DN20-150mm (1-6Inch) Globe & Safety Valve Grinding Machine

    Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product.

    Application:Cone globe valve seat,Flat Globe valve seat.
    Grinding scope:
    Cone  globe valve seat: Φ20~65mm,angle 60°、75°、90°(other angle can be done)
    Flat globe-valve seat: Φ20mm-150mm(1"-6")

    Motor power: 750W
    Rated Voltages: 220V
    Allowed adjustable length: L≤250mm
    Operating weight: 3kg


1. M-100 Portable  Valve Grinding Machine Overview
Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:
Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Easy to be used
High efficiency,good grinding quality
Maintenance in the site without valve disassembles and assembles

2. M-100 Portable  Valve Grinding Machine Technical Parameter
Application:Cone globe valve seat,Flat Globe valve seat.
Grinding scope:
Cone  globe valve seat: Φ20~65mm,angle 60°、75°、90°(other angle can be done)

Flat globe-valve seat: Φ20mm-150mm
Motor power: 750W
Rated Voltages: 220V
Allowed adjustable length: L≤250mm
Operating weight: 3kg


3.M-100 Portable  Valve Grinding Machine  Part list and installation pictures

The said grinder is composed of motors,hand-lift set,driving shafts,fixed set, lapping head, papei-pressure, gasket, nut and so on.

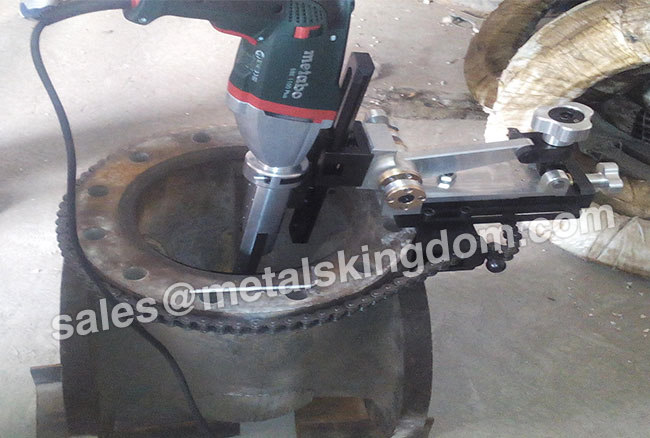

The following pictures separately expressed installation for various valves.

M-100 GlobeM-100 GlobeM-100 GlobeM-100 DN20-150mm (1"-6") Globe

M-100 DN20-150mm (1"-6") Globe

M-100 DN20-150mm (1"-6") Globe

M-100 DN20-150mm (1"-6") Globe
