Applications: Straight-through flanged valves, including gate, globe, and ball valves.
Test functions: Shell pressure testing, seat leakage testing, backseat testing, and low-pressure air testing.
Structure: Horizontal axial clamping type.
Standard sealing discs: Ø236 mm and Ø390 mm.
Test pressure: Up to 32 MPa.
Application: Valve manufacturing plants and maintenance workshops.

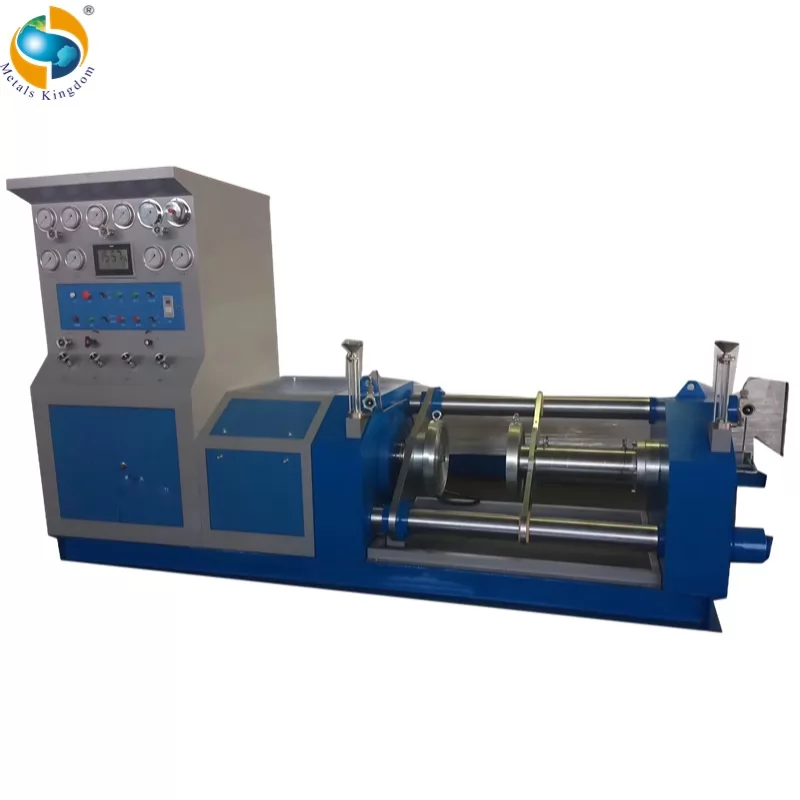

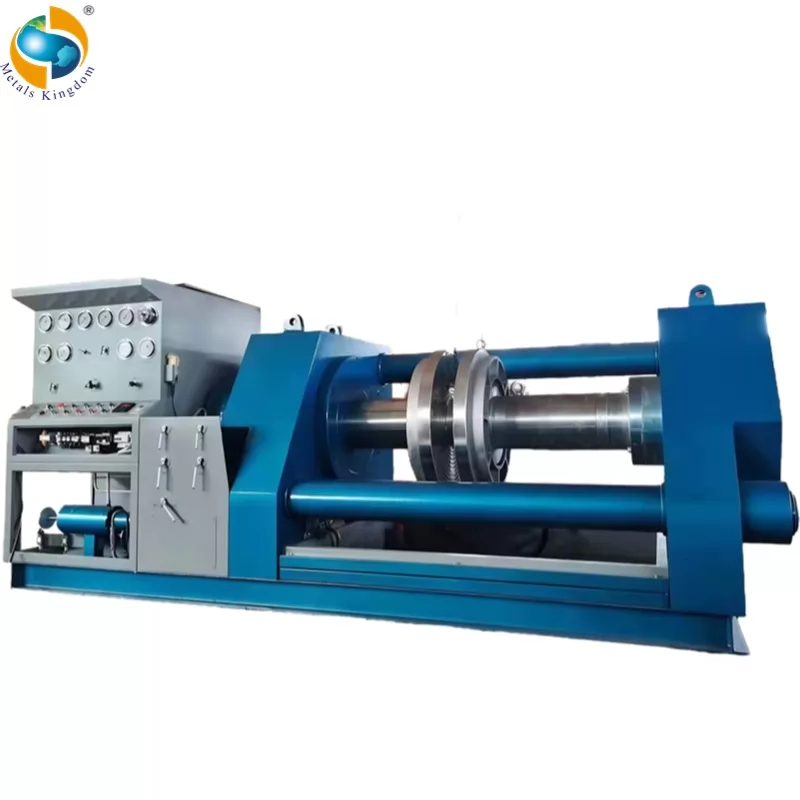

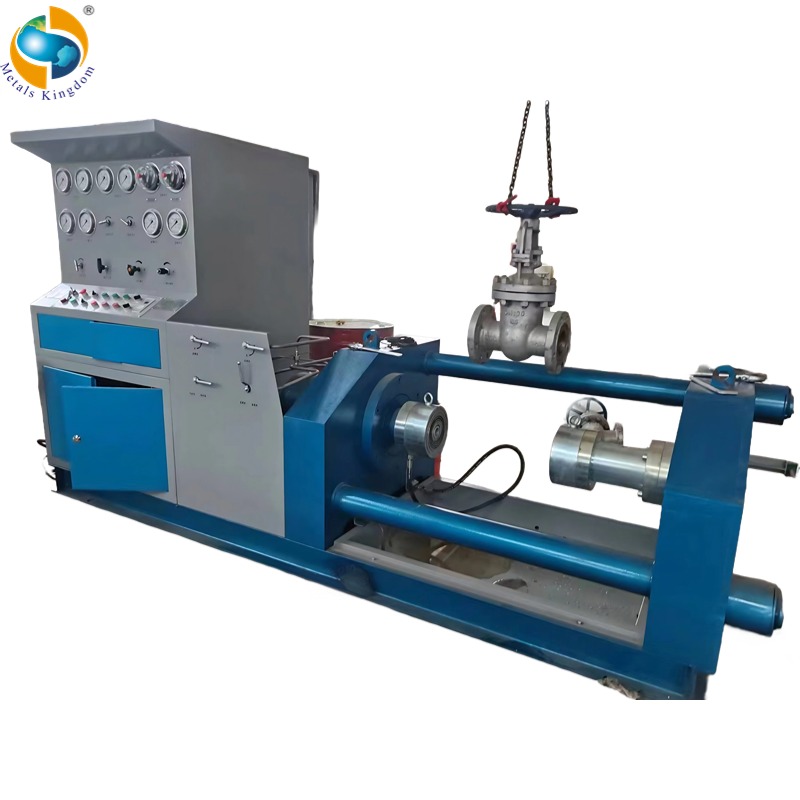

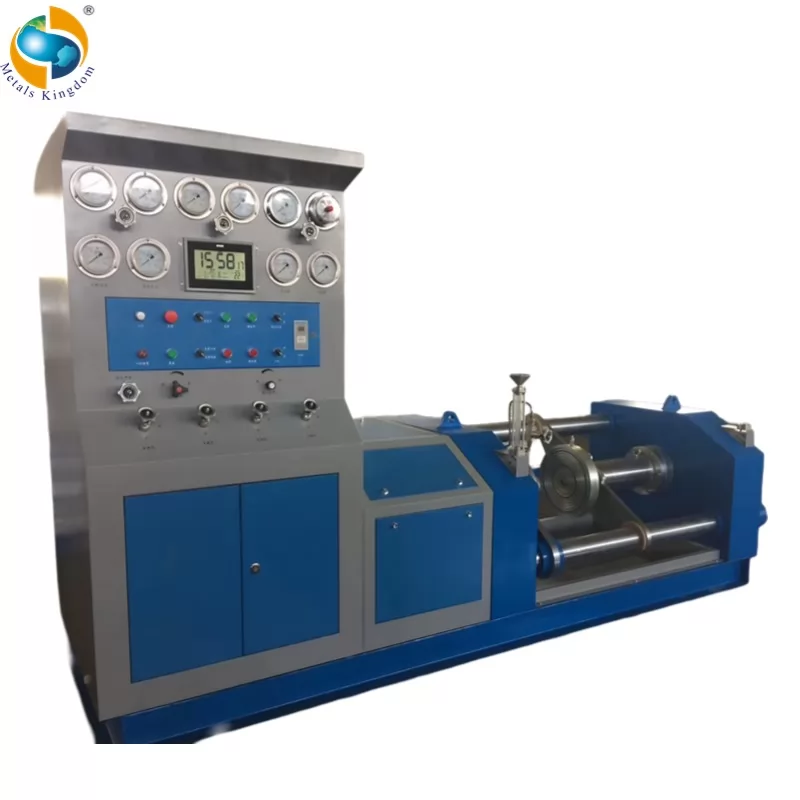

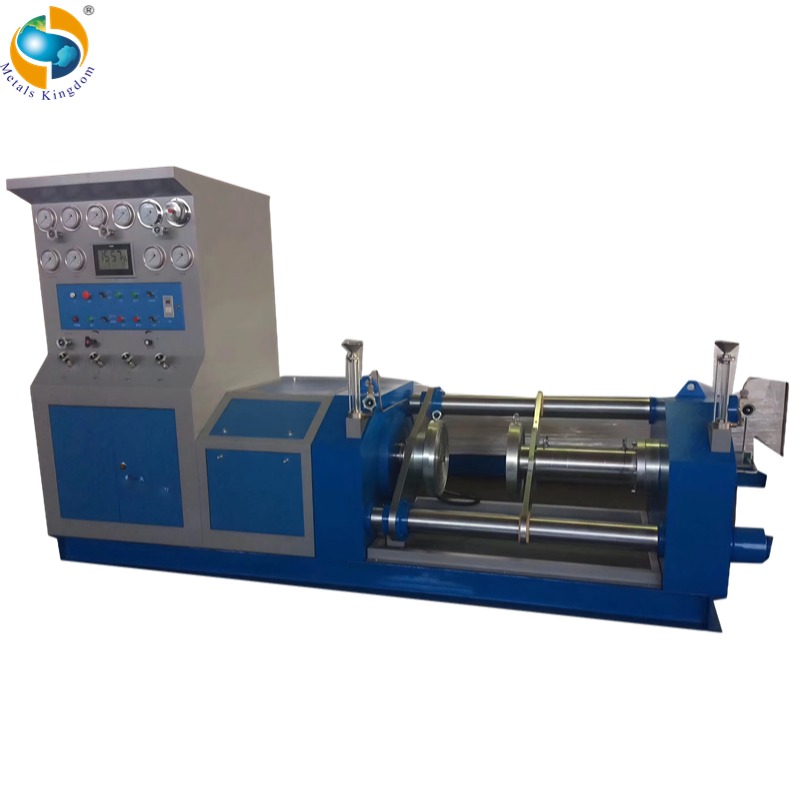

The SYTW300/16-32 Valve Pressure Test Bench is a horizontal valve pressure testing system designed for testing new or repaired straight-through flanged valves.
It is suitable for gate valves, globe valves, and ball valves, providing reliable solutions for shell pressure testing, seat leakage testing, backseat testing, and low-pressure pneumatic testing.
The horizontal axial clamping structure applies testing force to both ends of the valve, ensuring stable and safe pressure testing operation.
• Gate valves
• Globe valves
• Ball valves
• Straight-through flanged valves
• New valve inspection and repaired valve testing
• Horizontal axial clamping structure
• Suitable for valves that should not be subjected to external test loads
• Supports shell pressure and sealing performance tests
• Standard interchangeable sealing discs
• Suitable for valve manufacturers and maintenance workshops
• Stable operation and convenient valve loading
Shell Pressure Test: Verify valve body pressure resistance.
Seat Leakage Test: Check sealing performance of valve seats.
Backseat Test: Verify backseat sealing performance where applicable.
Low-pressure Air Test: Perform low-pressure pneumatic leakage inspection.
Model: SYTW300/16-32
Equipment type: Horizontal Valve Pressure Test Bench
Applicable valves: Gate valves, globe valves, ball valves
Clamping method: Horizontal axial clamping
Standard sealing discs: Ø236 mm and Ø390 mm
Maximum test pressure: 32 MPa
Test medium: Water and low-pressure air
The correct valve pressure test bench should be selected according to valve type, valve size, pressure class, flange dimensions, face-to-face dimensions, testing standard, and available site utilities.
Please provide the following information for technical recommendation:
• Valve type
• Valve size and pressure class
• Flange dimensions
• Face-to-face length
• Required test pressure
• Testing medium requirements
The SYTW300/16-32 Valve Pressure Test Bench is widely used in valve manufacturing plants, petroleum, petrochemical, power generation, chemical processing, and industrial maintenance facilities.
We provide technical documentation, equipment selection support, and customized valve pressure testing solutions according to customer requirements.
