SYTW500/3-32 Valve Pressure Test Bench

Home > > Products >Valve Pressure Test Bench >Horizontal Type Valve Test Bench

SYTW500/3-32 Valve Pressure Test Bench

Applications: Gate valves, globe valves, and ball valves.

Test functions: Shell pressure testing, seat leakage testing, backseat testing, and low-pressure air testing.

Valve size: DN200–500 (8″–20″)

Maximum test pressure: 32 MPa

Structure: Horizontal axial clamping type.

Applicable valve length: 400–2200 mm

Maximum clamping force: Approx. 600 ton-force.

Rated power: 11 kW

Inquire Now Next Product

Product features

Product Overview

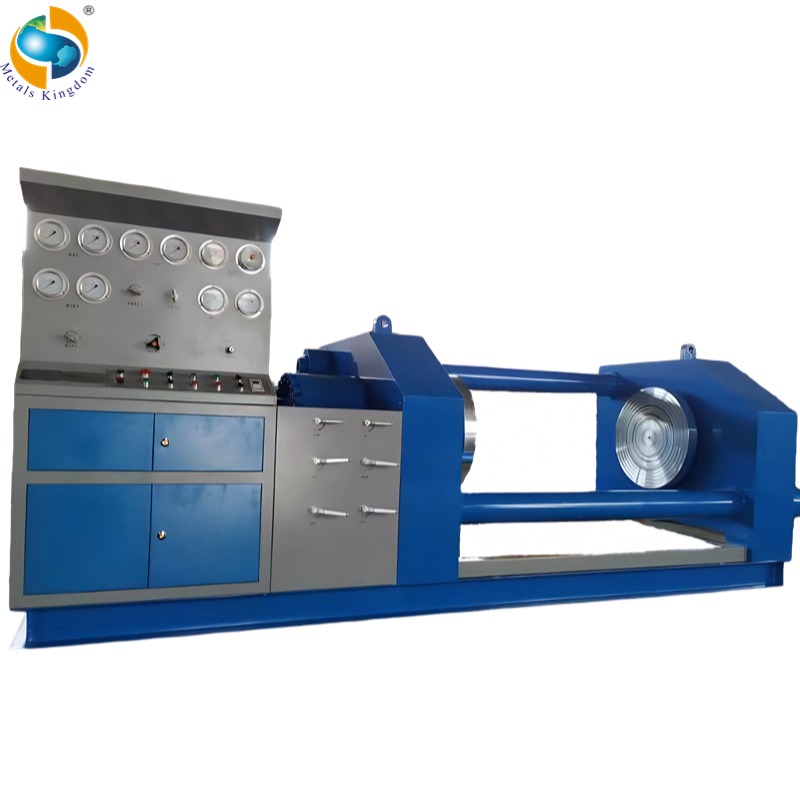

The SYTW500/3-32 Valve Pressure Test Bench is a heavy-duty horizontal valve testing system designed for pressure testing of large straight-through flanged valves.

It is suitable for gate valves, globe valves, and ball valves, providing reliable testing solutions for valve body strength, sealing performance, and leakage inspection.

The horizontal axial clamping structure applies force through the valve ends, helping prevent additional external loads during testing.

Applications

• Large gate valves

• Globe valves

• Ball valves

• Straight-through flanged valves

• Valve manufacturing and maintenance testing

Product Features

• Heavy-duty horizontal axial clamping structure

• Designed for large valve pressure testing

• High clamping force for stable operation

• Supports hydraulic and pneumatic testing

• Adjustable structure for different valve lengths

• Suitable for professional valve testing workshops

Testing Functions

Shell Pressure Test: Verify valve body pressure resistance.

Seat Leakage Test: Check sealing performance of valve seats.

Backseat Test: Verify backseat sealing performance where applicable.

Low-pressure Air Test: Perform pneumatic leakage inspection.

Technical Specifications

Model: SYTW500/3-32

Equipment type: Horizontal Valve Pressure Test Bench

Applicable valves: Gate valves, globe valves, ball valves

Valve size: DN200–500 (8″–20″)

Maximum test pressure: 32 MPa

Structure: Horizontal axial clamping type

Applicable valve length: 400–2200 mm

Maximum clamping force: Approx. 600 ton-force (5880 kN)

Rated power: 11 kW

Selection Information

The correct valve pressure test bench should be selected according to valve type, valve size, pressure rating, flange dimensions, face-to-face length, testing standard, and available utilities.

Please provide the following information for technical recommendation:

• Valve type

• Valve size and pressure class

• Flange dimensions

• Face-to-face length

• Required test pressure

• Testing medium requirements

Typical Industries

The SYTW500/3-32 Valve Pressure Test Bench is widely used in valve manufacturing plants, petroleum, petrochemical, power generation, chemical processing, metallurgy, and industrial maintenance facilities.
