Models: YM-60, YM-60S, YM-100, and YM-120
Applications: Weld-preparation beveling of metal plates.
Plate thickness: 6–100 mm, depending on model
Bevel angle: 0°–90°, depending on model
Maximum bevel width: 40–50 mm, depending on model
Bevel profiles: V, Y, U, and J, depending on model
Power supply: AC 380 V / 50 Hz / 3-phase
Machining method: Cold milling
None

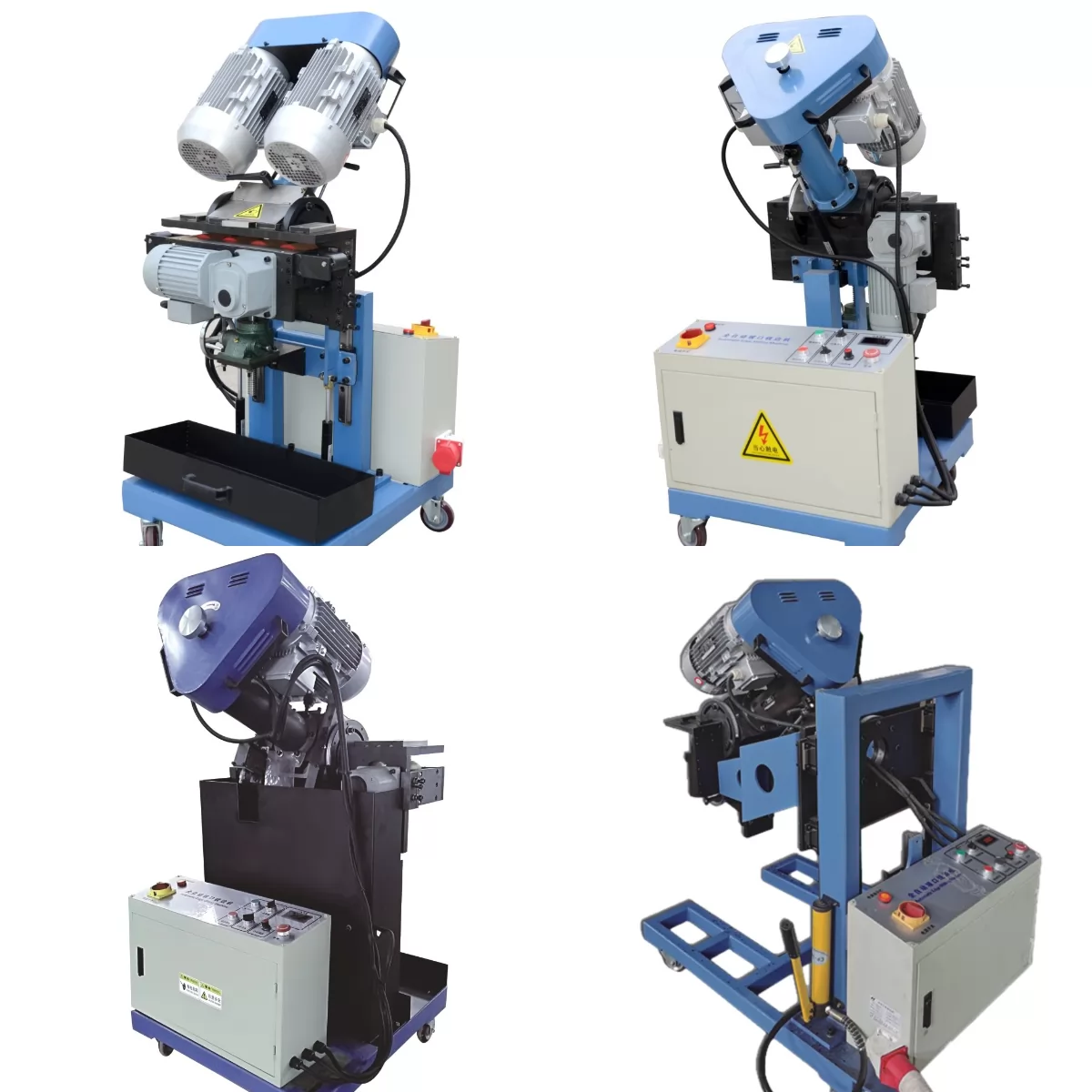

The YM Series Milling-Type Plate Beveling Machine is designed for weld preparation beveling of metal plates. It adopts a cold milling process to machine plate edges, providing accurate bevel geometry and high-quality machining surfaces.
Compared with flame cutting and manual grinding methods, the milling process avoids heat-affected zones, material deformation, hardness changes, and oxide layers, improving welding preparation quality and reducing additional finishing work.
The machine travels automatically along the plate edge and is suitable for stainless steel, carbon steel, alloy steel and other metal plate processing applications in industrial fabrication.
• Pressure vessel manufacturing
• Shipbuilding and offshore engineering
• Steel structure fabrication
• Petrochemical equipment manufacturing
• Power generation industries
• Heavy industrial fabrication
• Cold milling process without heat-affected zones
• Accurate bevel angle and consistent machining quality
• Automatic travel along the plate edge
• Adjustable bevel angle according to model requirements
• Smooth machining surface for improved welding quality
• Suitable for stainless steel, carbon steel, alloy steel and other metal plates
• Reduced manual grinding and preparation work
| Series | YM Series |
| Equipment Type | Milling-Type Plate Beveling Machine |
| Machining Method | Cold milling |
| Power Supply | AC 380 V / 50 Hz / 3-phase |
| Plate Thickness | 6–100 mm (depending on model) |
| Bevel Angle | 0°–90° (depending on model) |
| Maximum Bevel Width | 40–50 mm (depending on model) |
| Bevel Profiles | V, Y, U and J (depending on model) |
| Surface Roughness | Ra 3.2–6.3 μm |
| Model | YM-60 | YM-60S | YM-100 | YM-120 |
| Plate Thickness | 6–50 mm | 6–50 mm | 6–60 mm | 8–100 mm |
| Total Power | 4.8 kW | 4.8 kW | 6.4 kW | 6.4 kW |
| Main Motor Power | 2.2 kW × 2 | 2.2 kW × 2 | 3.0 kW × 2 | 3.0 kW × 2 |
| Travel Speed | 0–1.5 m/min | 0–1.5 m/min | 0–1.5 m/min | 0–1.5 m/min |
| Maximum Bevel Width | 40 mm | 40 mm | 50 mm | 50 mm |
| Bevel Profiles | V / Y | V / Y | V / Y | V / Y / U / J |
| Bevel Angle | 0°–60° | 0°–60° | 0°–60° | 0°–90° |
The milling-type beveling process produces a clean and accurate bevel surface without thermal influence. It is especially suitable for applications requiring high welding quality and consistent bevel geometry.
The self-propelled design improves working efficiency and reduces operator workload during long plate edge preparation operations.
The suitable model should be selected according to plate thickness, material, bevel profile, bevel angle and production requirements.
Please provide:
• Plate material
• Plate thickness
• Plate width
• Required bevel profile
• Required bevel angle
• Production requirements
The YM Series Milling-Type Plate Beveling Machine is widely used in shipbuilding, pressure vessel manufacturing, petrochemical equipment, power generation, steel structures and general industrial fabrication.
Metals Kingdom provides professional plate beveling solutions according to customer materials, dimensions and welding preparation requirements.
