Series: ISE/ISP Series
Structure: Internal-Expansion Pipe Beveling Machine
Application: Pipe cutting, facing and beveling
Machining Range: Φ16–600 mm
Clamping Method: Three-jaw internal expansion mechanism
Drive: Electric or pneumatic drive

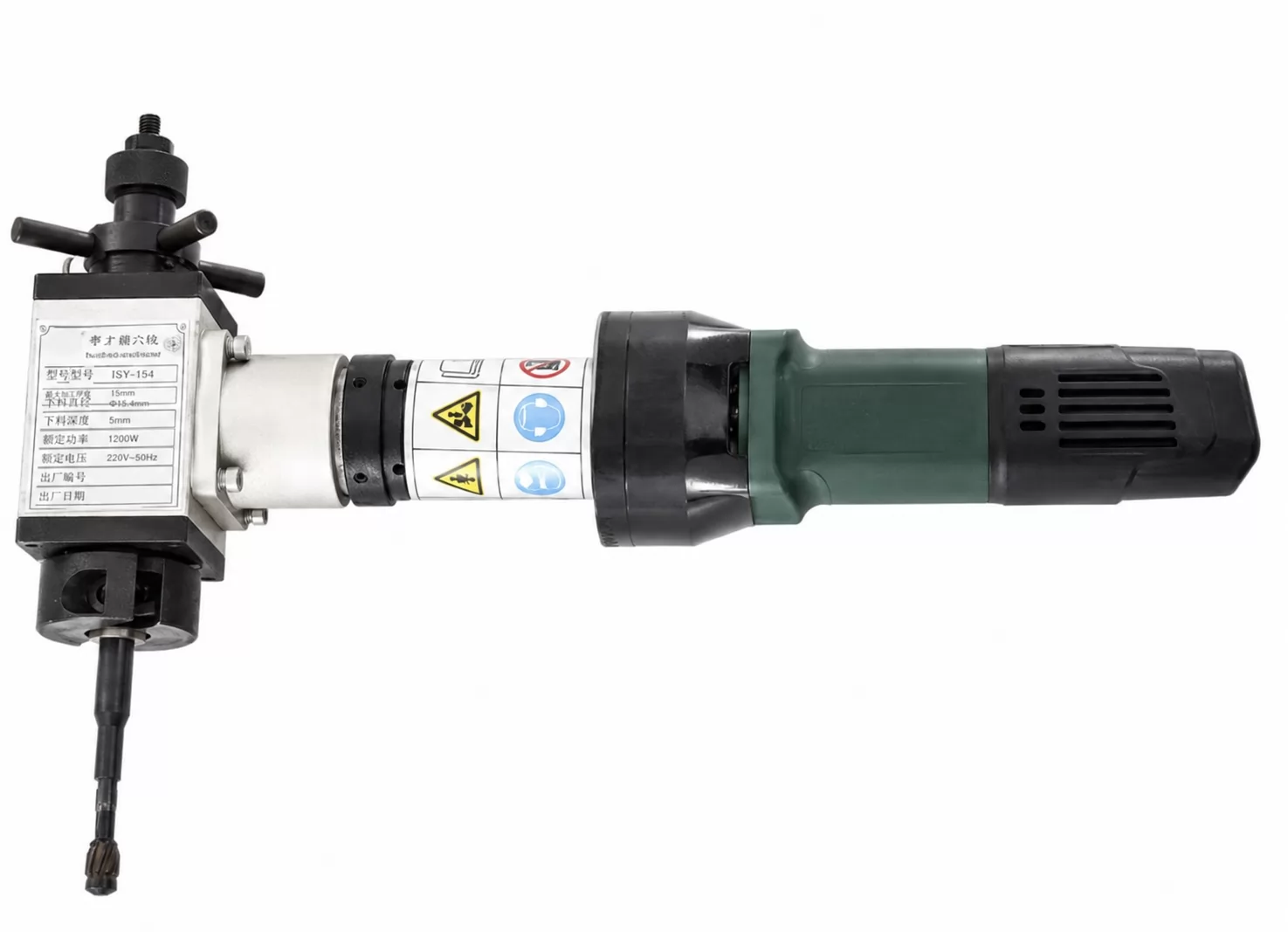

The ISE/ISP series Internal-Expansion Pipe Beveling Machine is a portable pipe preparation solution designed for accurate pipe cutting, facing and beveling operations.
The machine is mounted inside the pipe and centered by a three-jaw expansion mechanism, providing stable positioning and reliable machining performance.
With a compact design and high power-to-weight ratio, the ISE/ISP series is suitable for pipe fabrication and maintenance applications in petroleum, chemical, natural gas, shipbuilding, nuclear power, food processing, boiler and pharmaceutical industries.
• Industrial pipeline installation and maintenance
• Oil and gas pipeline projects
• Petrochemical plants
• Power generation facilities
• Shipbuilding and offshore engineering
• Boiler and pressure equipment industries
• Internal expansion clamping structure for accurate centering
• Three-jaw expansion mechanism for stable installation
• Portable design suitable for field operation
• Cold machining process without heat-affected zones
• Fast installation and easy operation
• Suitable for carbon steel, stainless steel, alloy steel and other metallic pipes
| Series | ISE / ISP Series |
| Structure | Internal-Expansion Type |
| Clamping Method | Three-jaw internal expansion mechanism |
| Machining Range | Φ16–600 mm |
| Maximum Wall Thickness | ≤75 mm (depending on model) |
| Functions | Pipe facing and beveling |
| Drive Type | Electric or pneumatic drive |
| Electric Model | Pneumatic Model | Machining Range |
| ISE-30 | ISP-30 | Φ16–28 mm |
| ISE-80 | ISP-80 | Φ28–76 mm |
| ISE-150 | ISP-150 | Φ65–159 mm |
| ISE-250 | ISP-250 | Φ80–240 mm |
| ISE-250-2 | ISP-250-2 | Φ80–240 mm |
| ISE-350 | ISP-350 | Φ150–330 mm |
| ISE-350-2 | ISP-350-2 | Φ150–330 mm |
| ISE-426 | ISP-426 | Φ250–426 mm |
| ISE-426-2 | ISP-426-2 | Φ250–426 mm |
| ISE-610 | ISP-610 | Φ300–600 mm |
| ISE-610-2 | ISP-610-2 | Φ300–600 mm |
Electric Drive: AC 220 V, 50–60 Hz, power range 0.8–2.2 kW depending on model.
Pneumatic Drive: Air pressure 0.63–0.8 MPa, air consumption 1,000–1,500 L/min.
The suitable model should be selected according to pipe outside diameter, wall thickness, material, bevel requirements and available power source.
Please provide:
• Pipe outside diameter
• Pipe wall thickness
• Pipe material
• Required bevel type
• Electric or pneumatic drive requirement
The ISE/ISP series is widely used in petroleum, chemical, natural gas, shipbuilding, nuclear power, food processing, boiler manufacturing and pharmaceutical industries.
Metals Kingdom provides professional pipe cutting and beveling solutions. Contact us with your pipe dimensions and machining requirements for model selection support.
