Series: CDM Series
Structure: Stationary Pipe Cutting and Beveling Machine
Application: Pipe cutting, facing and beveling for workshop fabrication
Pipe Outside Diameter: Φ30–914 mm
Wall Thickness: 5–25 mm
Cutting Process: Rotary cold cutting
Drive: Electric or hydraulic clamping options
None

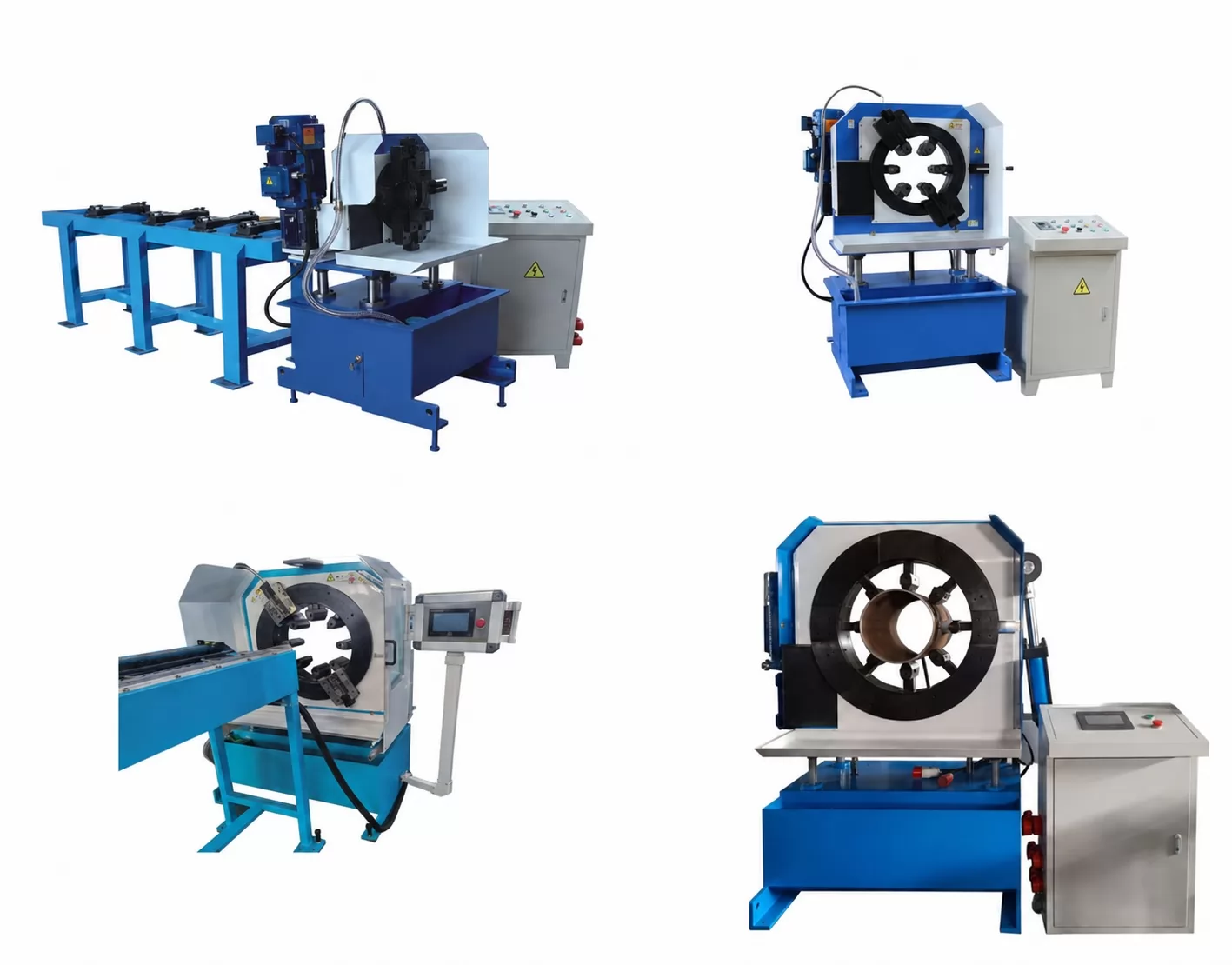

The CDM series Stationary Pipe Cutting and Beveling Machine is designed for workshop pipe fabrication and industrial pipe preparation.
The machine uses a mechanical ratchet-feed system to provide simple and reliable operation. It integrates pipe cutting and beveling functions, allowing efficient preparation of pipe ends for welding and assembly.
The rotary cold-cutting process produces a smooth and square pipe end without creating a heat-affected zone, reducing additional finishing work and improving welding preparation quality.
• Pipe fabrication workshops
• Petroleum and petrochemical industries
• Power generation projects
• Shipbuilding and offshore engineering
• Pharmaceutical and chemical industries
• Water treatment projects
• Cutting and beveling completed in one operation
• Suitable for pipe-end preparation and cutting at required positions
• Rotary cold cutting process without heat-affected zones
• Smooth and deformation-free machining surface
• Suitable for carbon steel, stainless steel, alloy steel and other metallic pipes
• Multi-point circumferential clamping minimizes pipe deformation
• Compact structure suitable for workshop and project applications
| Series | CDM Series |
| Structure | Stationary Pipe Cutting and Beveling Machine |
| Pipe Outside Diameter | Φ30–914 mm |
| Applicable Wall Thickness | 5–25 mm |
| Bevel Profiles | V, I, U and double-V |
| Standard Bevel | 30° V-bevel |
| Feed Method | Rotary radial automatic feed |
| Cooling Method | Circulating water cooling |
| Model | Pipe Outside Diameter | Main Motor Power |
| CDM-168 | Φ30–168 mm | 2.2 kW |
| CDM-325 | Φ80–325 mm | 3.0 kW |
| CDM-406 | Φ219–406 mm | 5.5 kW |
| CDM-508 | Φ325–508 mm | 5.5 kW |
| CDM-610 | Φ406–610 mm | 7.5 kW |
| CDM-711 | Φ508–711 mm | 7.5 kW |
| CDM-813 | Φ610–813 mm | 7.5 kW |
| CDM-914 | Φ711–914 mm | 7.5 kW |
The suitable CDM model should be selected according to pipe diameter, wall thickness, material and production requirements.
Please provide:
• Pipe outside diameter
• Pipe wall thickness
• Pipe material
• Required bevel profile
• Production requirements
The CDM series is widely used in petroleum, petrochemical, pharmaceutical, metallurgy, water treatment, shipbuilding, power generation and offshore engineering industries.
Metals Kingdom provides professional stationary pipe cutting and beveling solutions according to pipe dimensions, materials and application requirements.
