1.Product Introduction

Stationary valve grinding machine is suitable for the relief valve off site repairing, widely applied in coal-fired power petrochemical steel metallurgical paper and other industries.

Feature:
1)Stationary, more stable and durable

2)Easy to operate,higher efficiency

2.Technical Parameter

1. Grinding Range（mm） :DN100-600mm (4"-24")

2. The valve core and valve seat below DN100 shall be equipped with small grinding disc assembly

3. Maximum allowable valve height:1350mm

4. Maximum allowable valve flange diameter:φ1040mm

5. Maximum grinding depth:720mm

6. Maximum telescopic length of spindle:300mm

7. Workbench size:600mm×850mm

8. Maximum allowable valve core diameter of workbench:φ750mm

9. Workbench tilt angle adjustment range:0~12°

10. Left and right movement range of workbench:±60mm

11. Clamping range of workbench V-block:φ45mm~φ500mm

12. Main motor power:2200W

13. Power of lifting motor:550W

14. Speed change stage of spindle:stepless frequency control

15. Speed range of spindle:0~1400r/min

16. Eccentricity of spindle:2.5mm

17. Equipment parameters with eccentric spindle, optional

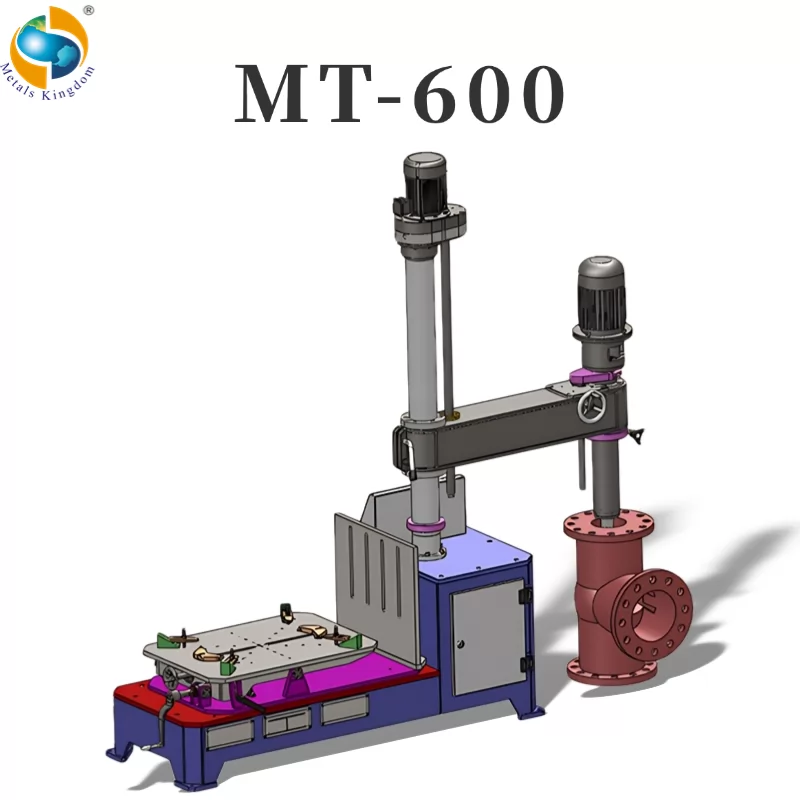

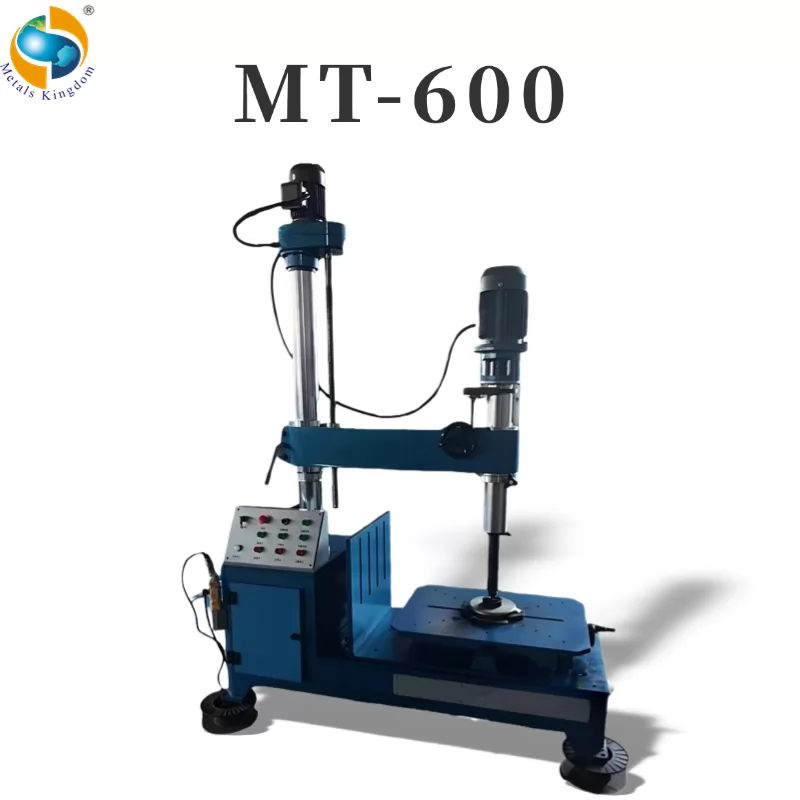

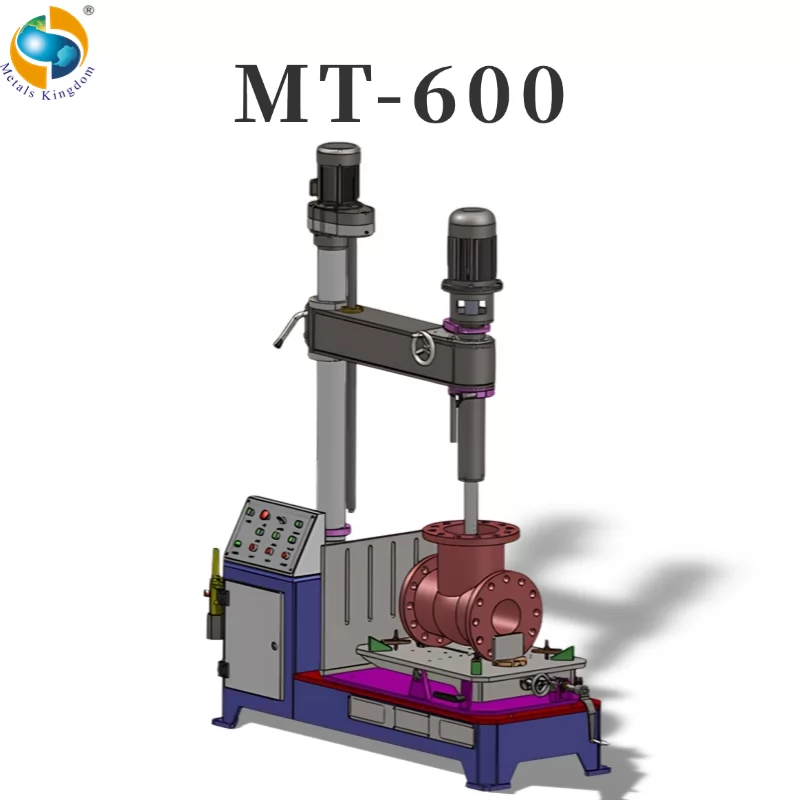

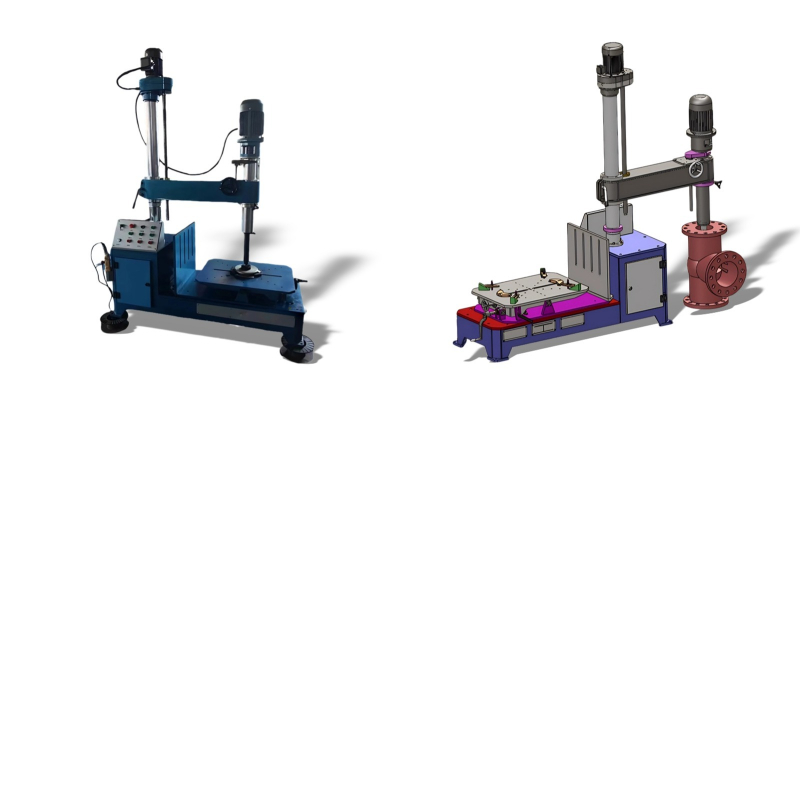

3.MT-600 Stationary Valve Grinding Machine Picture
