MT-1200X DN300-800mm Stationary Valve Core Grinding Bench

    Stationary valve grinding machine is suitable for the valve disks of gate valves and globe valves,it is  widely applied in coal-fired power petrochemical steel metallurgical paper and other industries
    Feature:
    1、Stationary, more stable and durable
    2、double station design,Easy to operate, higher efficiency

    Grinding Scope:

    DN100-500mm DN300-800mm


1.Product review:

Stationary valve grinding machine is suitable for the valve disks of gate valves and globe valves,it is  widely applied in coal-fired power petrochemical steel metallurgical paper and other industries
Feature:
1)Stationary, more stable and durable
2)double station design,Easy to operate, higher efficiency

2.Technical parameters

ItemMT-500X/2MT-800X MT-1200X
Grinding   Range(mm)DN20-300mm (1"-12")DN100-500mm (4"-20")DN300-800mm (12"-32")
Suitable   ValveValve   disc/core of  Plane globe valve, gate   valve,   Safety valveValve   disc/core of  Plane globe valve, gate   valve,   Safety valveValve   disc/core of  Plane globe valve,   gate valve,      Safety valve
Power   parameters Voltage(V)/ Frequency(HZ)380/50HZ380/50HZ380/50HZ
Power(KW)1.1*2=2.2   Double motors1.51.5
Adjust   SpeedVariable   frequency stepless speed regulationFrequency   conversion and stepless speed regulationFrequency   conversion and stepless speed regulation
The   Dia of Grinding plateDia   500mmDia   800mmDia   1200mm
Quantity   of Grinding Plate211

3.Product Picture:

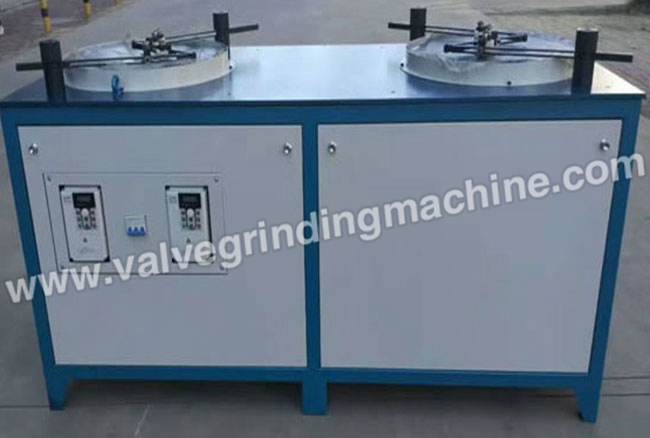

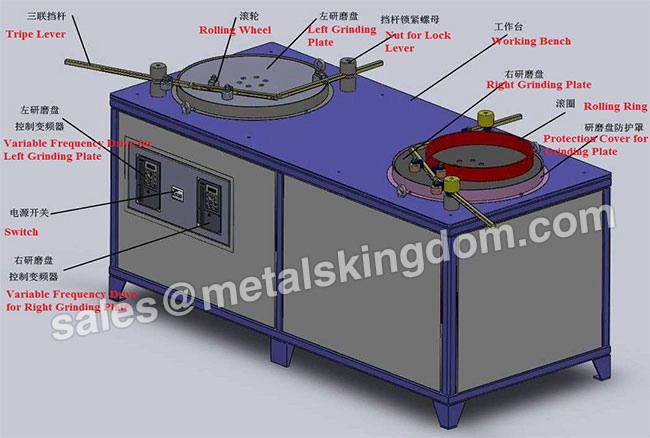

MT-500X/2 Stationary Valve Grinding Machine

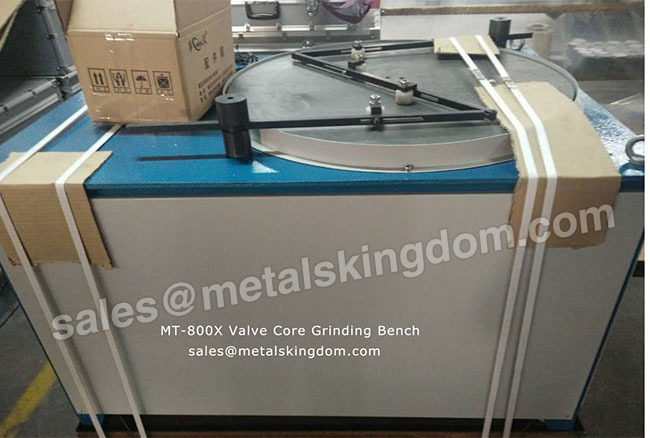

MT-800X  DN100-500mm (4"-20") Stationary Valve Core Grinding BenchMT-800X  DN100-500mm (4"-20") Stationary Valve Core Grinding Bench

MT-500X/2 Stationary Valve Grinding Machine

MT-500X/2 Stationary Valve Grinding Machine
