Product Overview

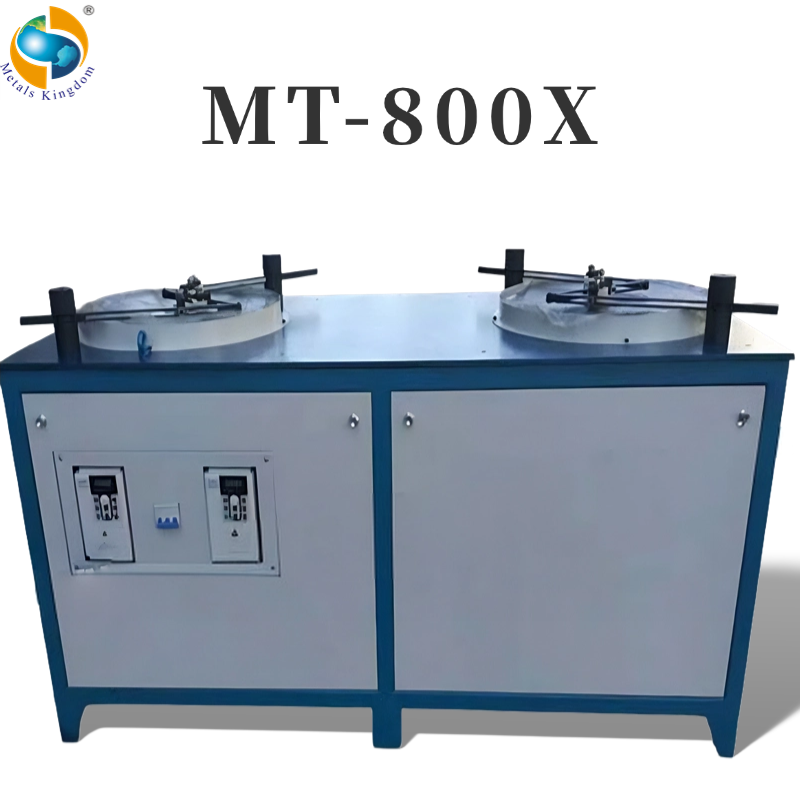

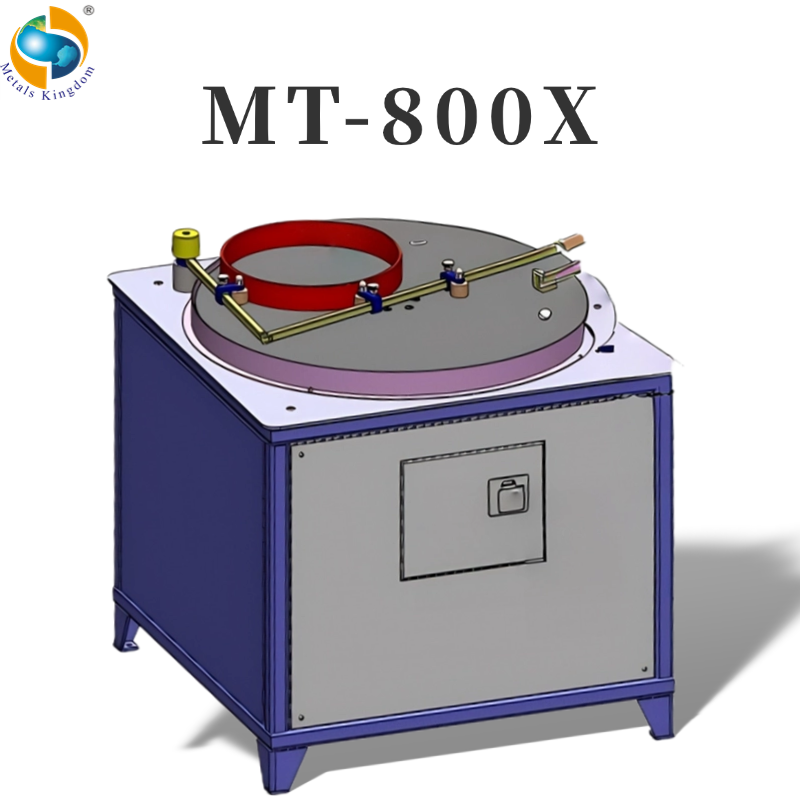

The MT-800X is a stationary valve grinding machine designed for precision repair of valve seats and valve discs in workshop environments.

With a rigid structure and Φ800 mm grinding disc, the machine provides stable and efficient grinding performance for DN100–500 valves.

The MT-800X is suitable for industrial valve maintenance where consistent grinding accuracy and reliable operation are required.

Applications

• Valve seats

• Valve discs

• Industrial valve sealing surface restoration

• Workshop valve repair and maintenance

Product Features

• Stationary structure for high stability

• Suitable for medium-size valve maintenance

• Φ800 mm grinding disc for efficient surface restoration

• Variable-speed operation for different grinding requirements

• Rigid machine structure for improved grinding accuracy

• Suitable for continuous workshop maintenance operations

Technical Specifications

Model: MT-800X

Applications: Valve seats and valve discs

Grinding range: DN100–500 (4″–20″)

Grinding disc diameter: Φ800 mm

Power supply: 380 V / 50 Hz

Motor power: 2.2 kW

Speed control: Variable speed

Structure: Stationary grinding machine

Equipment weight: 350 kg

Model Selection Information

The valve size range is provided for reference only. The correct machine configuration should be selected according to the actual valve structure, sealing surface dimensions, and maintenance requirements.

Please provide the following information when requesting a recommendation:

• Valve type

• Valve size and pressure rating

• Valve seat or disc dimensions

• Required grinding diameter

• Valve drawings or clear photos

Typical Industries

The MT-800X is widely used in power generation, petroleum, petrochemical, chemical processing, metallurgy, shipbuilding, water treatment, and other industrial valve maintenance applications.

Technical Support

We provide technical documentation, product selection assistance, operation guidance, and after-sales support.

Please contact us with your valve information and maintenance requirements for a suitable grinding solution.
