M-100C DN20-100mm (1-4Inch) Cone Globe Valve Grinding Machine

    1. Grinding Scope:DN20-100mm (1"-4")

    2. Suitable valves:Cone Globe valve Valve seat,safety valves

    3. angle: 30°,40°,60°,75°,90°

    4. can be Selected


1.  Overview
Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:
Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Easy to be used
High efficiency,good grinding quality
Maintenance in the site without valve disassembles and assembles

2.   Technical Parameter


  Item
M-100M-100A for        Flat Globe ValveM-100C for Cone   Valve
Grinding Range(mm)

DN20-150mm

Offline gate   valve,

globe valve

Dn20--150mm

Flat Globe Valve,

Safety Valve,

Flat Globe Vavle   Seat

DN20-100mm

 Cone Globe  Valve seat

angle: 30°,40°,60°,75°,90°

can be Selected

Voltage(V)220220220
Power(W)750750750
Frequency(HZ)505050
Max Grinding Depth(mm)250250250
Gross Weight(kg)2623.523.5

3. Part list and installation pictures

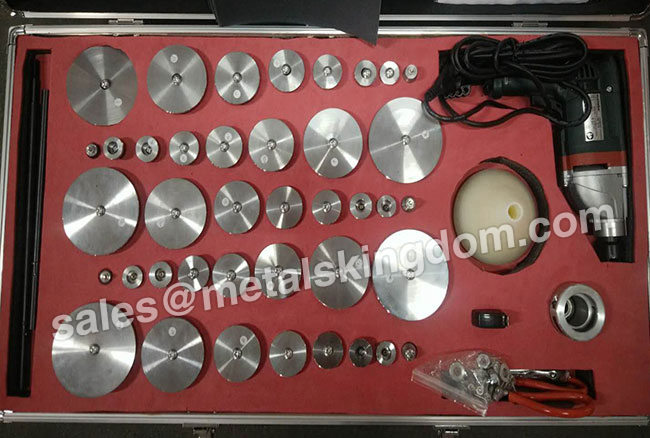

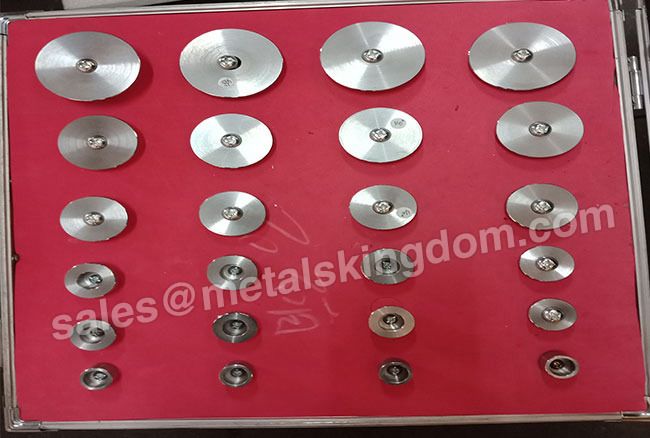

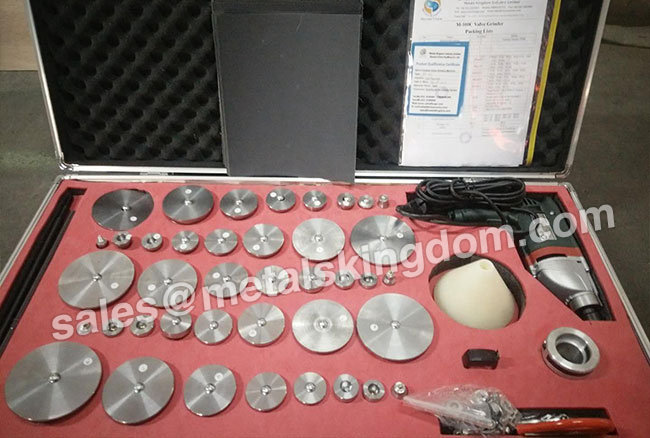

The said grinder is composed of motors,hand-lift set,driving shafts,Centering Sleeve, lapping head, paper-pressure, gasket, nut and so on.
The following pictures separately expressed installation for various valves.
